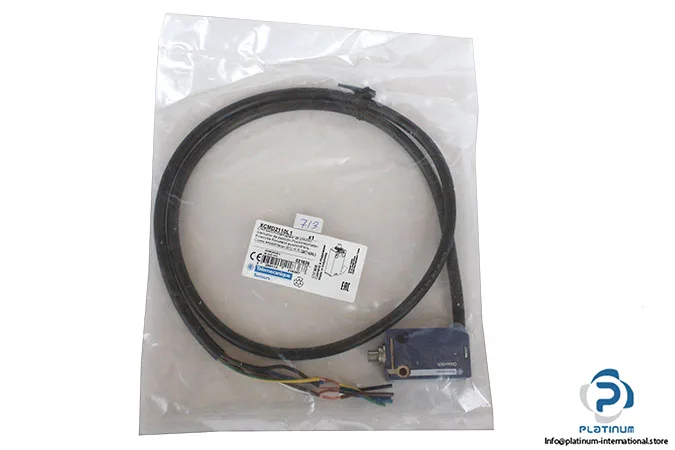

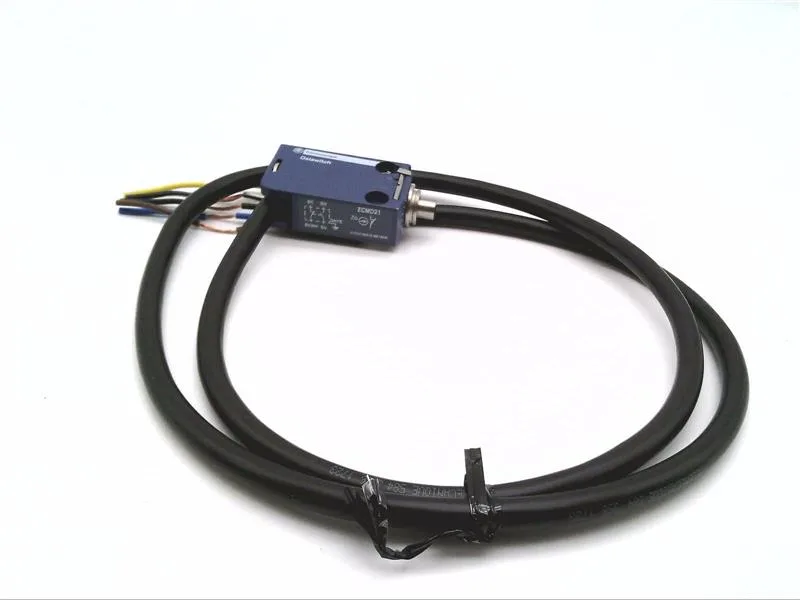

Schneider XCMD2110L1 Limit Switch
MPNXCMD2110L1
SQUARE D XCMD2110L1: LIMIT SWITCH 240VAC 5A PLAST XCMD
$22.86Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Miniature, Modular |
| Operation type | Snap Action, Spring Return |
| Connection type | 1 Meter Pre-Wired Removable Cable Connector |
| Actuator (Head type) | Metal Linear Top Push Rod Plunger |
| Contact configuration | 1NO-1NC |
| Enclosure | NEMA 4X/6P/12/13, IP66/IP67/IP68 |
| Operating temperature | -13 to 158 Deg F |
| Body material | Zamak |
| Approval | UL, CSA, CCC |
| Model | XCMD |
| Category | Miniature & Snap Action Limit Switches |
| Pretravel | 1.8 Millimeter |
All specifications+12 ▾
| Parameter | Value |
|---|---|
| Manufacturer | Square D Co. |
| Sub-Category | General/Heavy Duty Limit Switch |
| Total travel | 5 Millimeter |
| Contact rating | 240 Volt AC 1.5 Amp, 250 Volt DC 0.1 Amp |
| Operating force | 42.5 Newton (Positive Opening), 8.5 Newton (Tripping) |
| Operating travel | 4.2 Millimeter |
| Manufacturer brand | Square D Co. |
| Differential travel | 0.8 Millimeter |
| Product description | Telemecanique XCMD2110L1 Limit Switch 240Vac 5A Plastic Xcmd |
| Additional information | Overall Dimension 1.18 Inch Width x 1.97 Inch Depth x 0.63 Inch Height; Number of Poles 2; Sealing Material Nitrile (Buna N) and Silicon |
| Full technical description | Miniature, Modular Type; 1NO-1NC Contact Configuration; 1 Meter Pre-Wired Removable Cable Connector Connection Type; Snap Action, Spring Return Operation Type; 240 Volt AC 1.5 Amp, 250 Volt DC 0.1 Amp Contact Rating; UL, CSA, CCC Approval; NEMA 4X/6P/12/13, IP66/IP67/IP68 Enclosure; Zamak Body Material; -13 to 158 Deg F Operating Temperature; 42.5 Newton (Positive Opening), 8.5 Newton (Tripping) Operating Force; 4.2 Millimeter Operating Travel; 0.8 Millimeter Differential Travel; Metal Linear Top Push Rod Plunger Actuator/Head Type; 1.8 Millimeter Pretravel; 5 Millimeter Total Travel; Osisense Brand; Overall Dimension 1.18 Inch Width X 1.97 Inch Depth X 0.63 Inch Height; Number of Poles 2; Sealing Material Nitrile (Buna N) and Silicon; XCMD Model |
| Proposition 65 warning | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
MPN
XCMD2110L1
