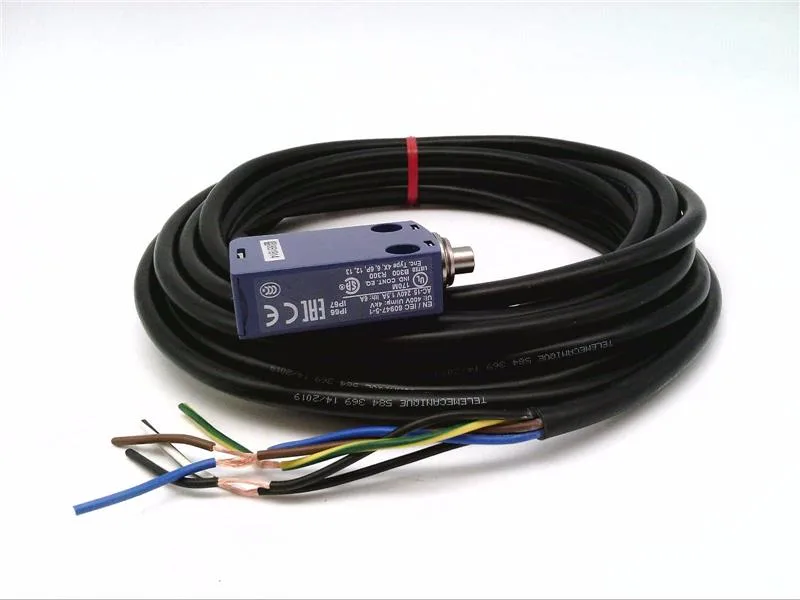

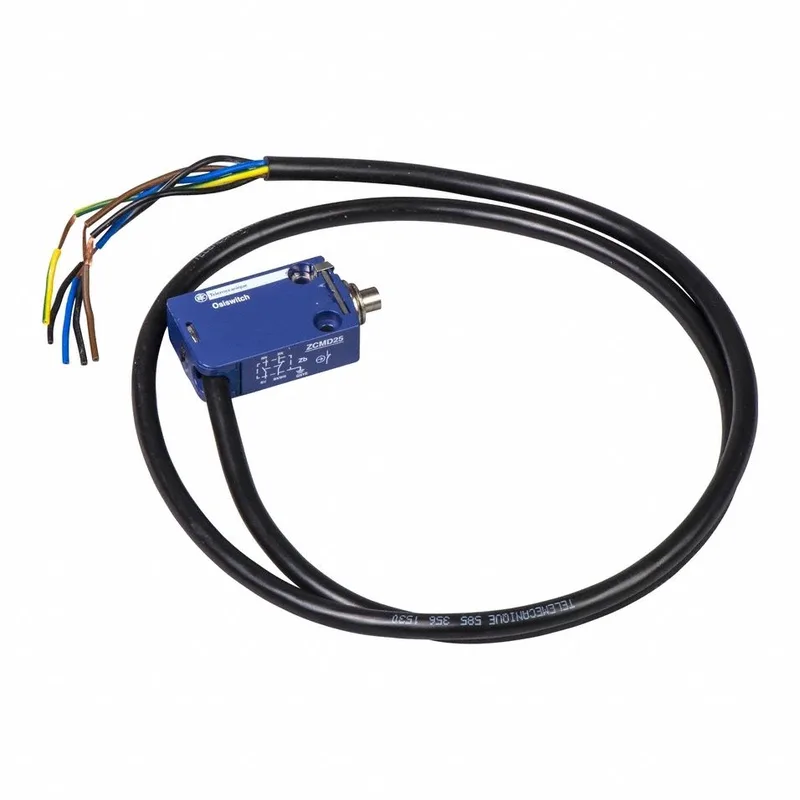

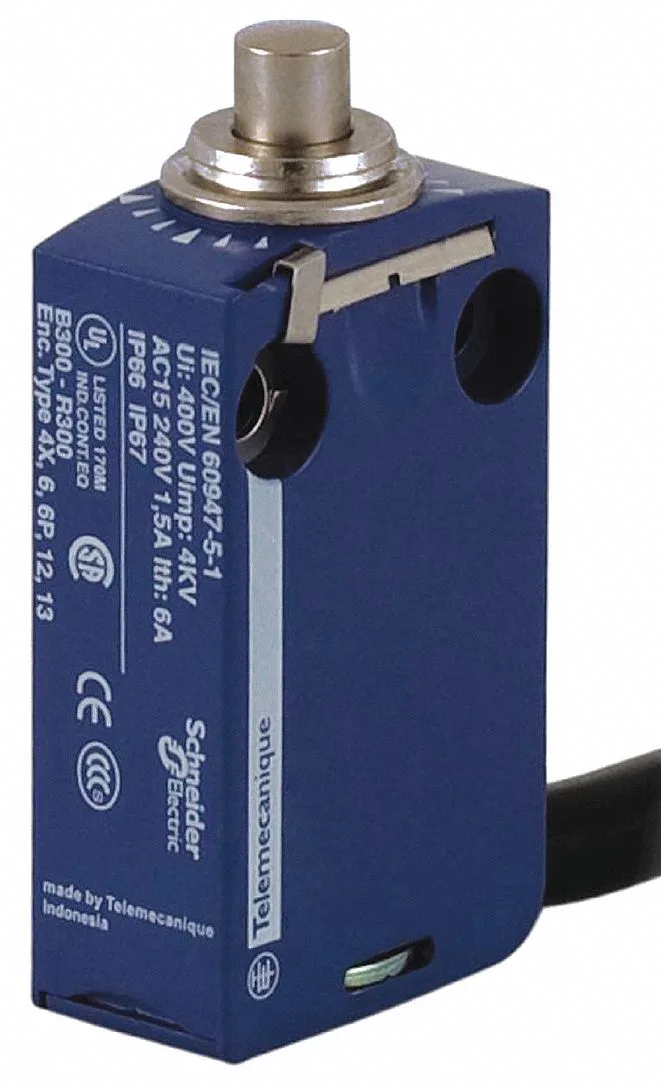

Schneider Electric XCMD2110L5
MPNXCMD2110L5
TELEMECANIQUE SENSORS Limit Switch: Plunger Actuator, Non-Metallic, Plunger, 8.5 N Op Force - Max
$30.48Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Series | XCMD |
| Body material type | Non-Metallic |
| Contact form | 1NO/1NC |
| IP rating | IP66; IP67; IP68 |
| NEMA enclosure rating | 1; 12; 13; 2; 4; 6; 6P |
| Mounting style | Surface |
| Mounting hole diameter | 0.17 in |
| Number of mounting holes | 2 |
| Mounting hole horizontal center to center distance | 20 mm |
| Electrical connection | Removable Cable Connector |
| Operating temperature - maximum | 158 °F |
| Operating temperature - minimum | -13 °F |
All specifications+19 ▾
| Parameter | Value |
|---|---|
| Body depth | 0.63 in |
| Body width | 1.18 in |
| Body height | 1.97 in |
| Arm material | Metal |
| Body material | Zamak |
| Overall depth | 0.63 in |
| Overall width | 1.18 in |
| Overall height | 1.97 in |
| Standards | CSA; CSA C22.2 No.14; EN 60947-5-1; IEC 60947-5-1; UL 508; UL Listed |
| Brand | TELEMECANIQUE SENSORS |
| Actuator style | Plunger |
| Actuator length | 0.39 in |
| AC contact rating | 1.5 A @ 240 V |
| Actuator location | Top |
| DC contact rating | 0.1 A @ 250 V |
| Boot sealed actuator | No Boot Included |
| Directional movement | Linear |
| Resistance properties | Shock Resistant; Vibration Resistant |
| Operating force - maximum | 8.5 N |
MPN
XCMD2110L5
