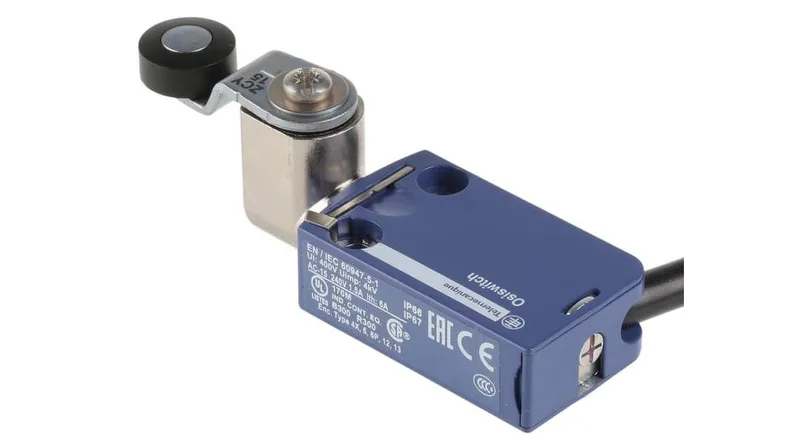

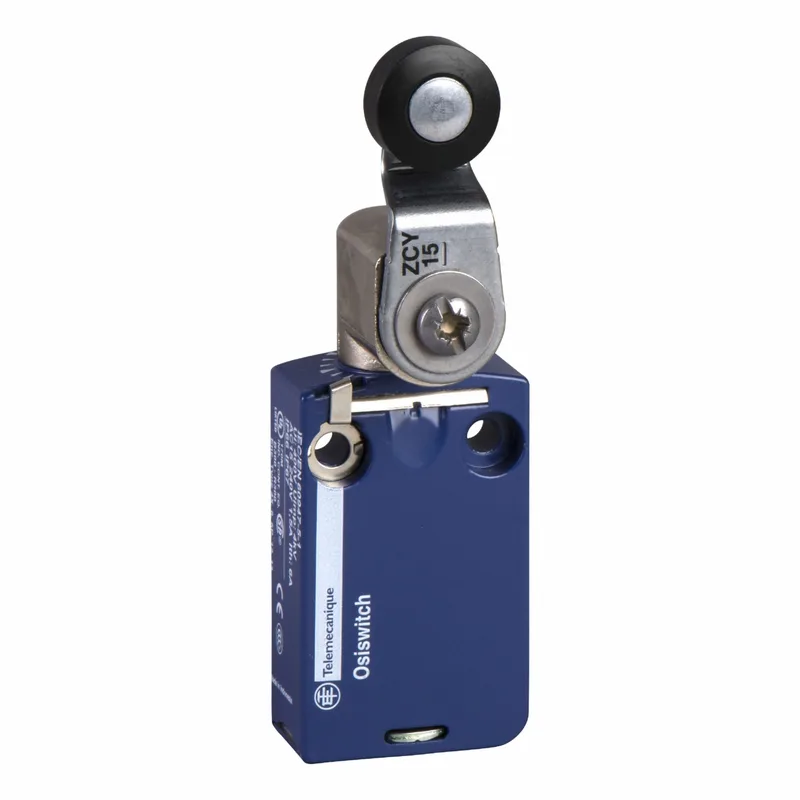

XCMD2115L1 Schneider Electric

MPNXCMD2115L1

XCMD2115L1 (Schneider Electric) — datasheet specifications below.

$22.86Ref. price · indicative, final on quote

Add to RFQ

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

XCMD2115L1 key specifications
Parameter	Value
Series	XCMD
Actuation	Roller Lever
Contact form	1NO/1NC
IP rating	IP66; IP67; IP68
NEMA enclosure rating	1; 2; 4; 6; 6P; 12; 13
Mounting style	Surface
Mounting hole diameter	0.17 in
Number of mounting holes	2
Mounting hole horizontal center to center distance	20 mm
Electrical connection	Removable Cable Connector
Operating temperature - maximum	158 °F
Operating temperature - minimum	-13 °F

XCMD2115L1 additional specifications
Parameter	Value
Body depth	0.63 in
Body width	1.18 in
Body height	1.97 in
Arm material	Metal
Roller width	0.23 in
Body material	Zamak
Overall depth	0.63 in
Overall width	1.18 in
Overall height	1.97 in
Roller material	Thermoplastic
Standards	CCC; CSA; CSA C22.2 No.14; EN 60204-1; EN 60947-5-1; IEC 60204-1; IEC 60947-5-1; UL 508; UL Listed
Actuator style	Roller Lever Plunger
Actuator length	1.36 in
Roller diameter	0.63 in
AC contact rating	1.5 A @ 240 V
Actuator location	Side
DC contact rating	0.1 A @ 250 V
Boot sealed actuator	No Boot Included
Directional movement	CCW/CW
Resistance properties	Shock Resistant; Vibration Resistant
Operating torque - maximum	0.9 in-lb
Environments & applications	Submersible
