XCMD2125L2 at a glance

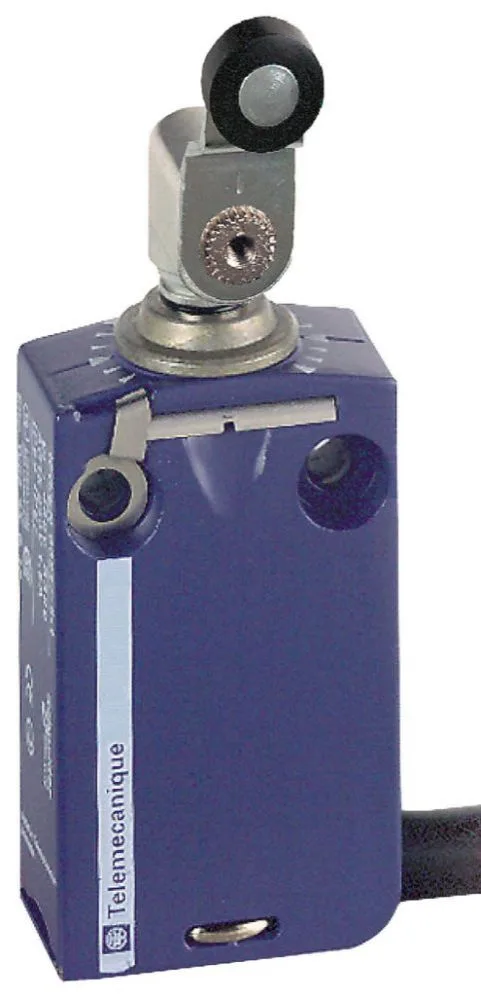

XCMD2125L2 is a miniature snap-action limit switch from Schneider Electric's Telemecanique sensor line, listed under the Miniature & Snap Action Limit Switches class. The compact form factor targets machine-tool and automation-panel position feedback where a sealed, short-stroke actuator is needed at each moving reference point. Branding carries both the Square D Switches & Sensors trade name and the Telemecanique product line, consistent with the legacy dual-mark on Schneider's North American sensor inventory. UPC 389119019371 anchors the box label for reorder and customs paperwork.
Where it fits in the panel
As a Miniature & Snap Action Limit Switch, XCMD2125L2 is wired into the low-voltage control loop — typically 24 VDC logic into a PLC or safety input — to confirm end-of-travel, guard-door closed, or cam-actuated position. Snap-action contacts give a defined switching point with low contact bounce, which is the usual reason a snap-action body is picked over a slow-make reed style on high-cycle machine guards.
