What fits where on the machine

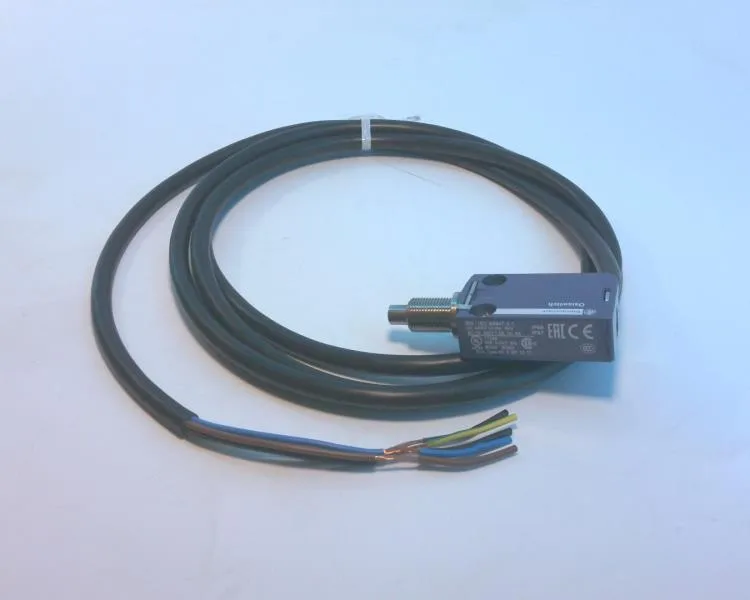

The XCMD21F0L2: The Osiswitch XCMD line builds around a M12 threaded plunger head that threads straight into a bracket or actuator arm, so this unit drops into position-sensing duties on conveyors, packaging skids, and door-interlock chains without a special mount (cite:). Snap-action operation and a 1.8 mm pretravel give a clean latch on every actuation, with total travel held to 5 mm and differential travel at 0.8 mm — narrow enough to repeat reliably on small cam profiles but wide enough that minor bracket flex doesn't cause nuisance trips (cite:,).
Contact and electrical envelope
The 1NO-1NC contact block is rated 240 VAC at 1.5 A and 250 VDC at 0.1 A, which slots into low-current logic duties downstream of a PLC or safety relay rather than direct motor switching — confirmation circuits, end-of-travel, and valve-position feedback are the typical fit (cite:,). Snap-action mechanism means the contacts transfer almost instantaneously once the pretravel is consumed, so there is no slow-make concern with inductive loads and the auxiliary NC leg fails to a safe state in most machine-safety architectures (cite:).
Sealing for washdown and outdoor skids
NEMA 1, 2, 4, 4X, 6, 12, and 13 ratings carry over to IP66, IP67, and IP68 sealing, so the ZAMAK zinc-alloy body holds up under hose-down, light immersion, and caustic washdown that would eat a less-sealed unit (cite:,). Operating temperature spans -13 to 158 °F, covering most indoor line environments and a wide band of outdoor cabinet placements without heaters or cold-weather enclosures (cite:).
Termination and approvals

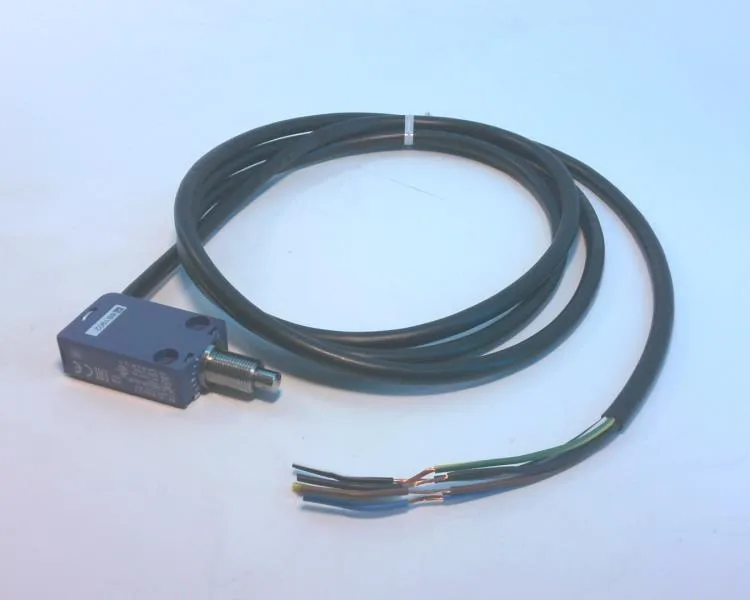

A 2 m pre-wired removable cable connector leads out of the head, so field replacement swaps the pre-wired pigtail rather than re-terminating individual conductors each time the switch goes bad (cite:). The unit is built to EN/IEC 60204-1 and EN/IEC 60947-5-1, and carries UL and CSA approvals — the standards buyers expect on North American and EU machinery panels (cite:,).
Procurement posture
Lifecycle stage is listed as current and the brand is Schneider Electric, so the part flows through normal industrial distribution channels (cite:,). Two UPC values (78590126903 and 389119000300) appear in the listing — the second is the 12-digit format used on Square D / Telemecanique legacy paperwork, worth knowing if the buyer's receiving system keys on either string (cite:,).
