240 VAC 1.5 A contact set in a miniature zinc body

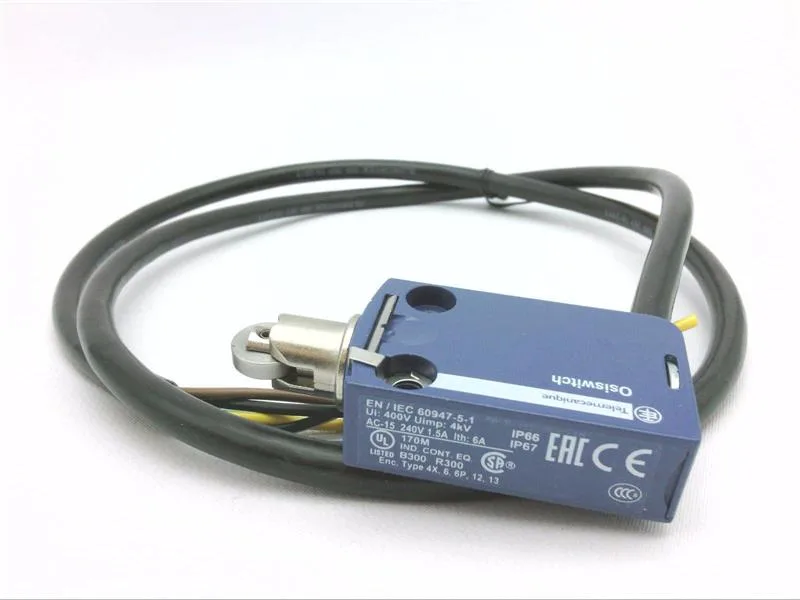

The XCMD2502L1 is an Osiswitch-brand miniature heavy-duty limit switch in the XCMD modular series, with a steel roller plunger actuator and a Zamak zinc alloy body — a compact mechanical position sensor for guard doors, conveyor diverters, and end-of-travel stops on production machinery.
IP66/67/68 and NEMA 1 through 13 sealing for washdown and outdoor cells
The enclosure rating is NEMA 1/2/4/4X/6/12/13 alongside IP66, IP67, and IP68, meaning the switch body withstands hosed-down washdown, temporary submersion, and dust ingress — a fit for food-and-beverage lines, outdoor conveyor sections, and any cell where caustic cleaning is routine. Operating temperature spans -13 to 158 °F (-25 to 70 °C), so the same switch covers unheated outdoor cabinets and inside-panel mounting near a drive's heat sink without derating the contact rating.
Pre-wired 1 m cable, UL/CSA listed under EN/IEC 60947-5-1

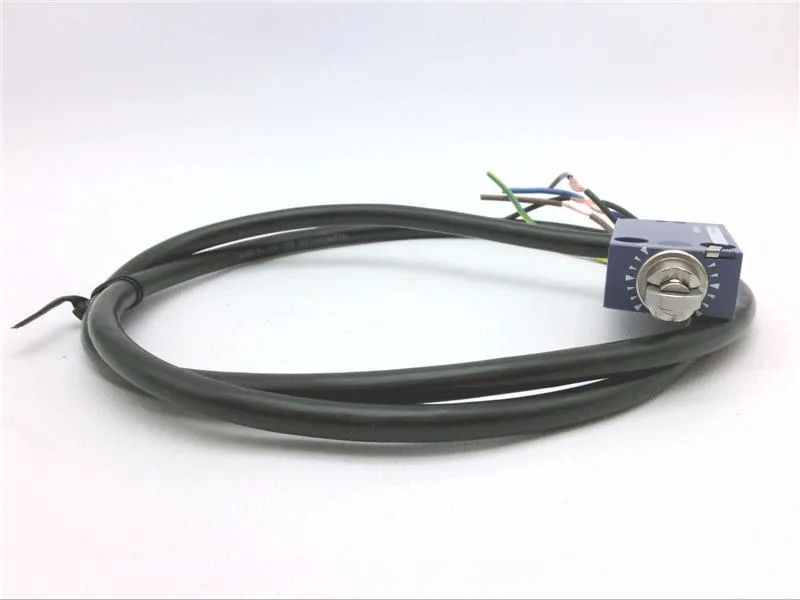

Connection is a 1 m pre-wired removable cable — no conduit seal or gland assembly at the switch body, which keeps panel-side wiring to a gland entry rather than a threaded conduit run, and the removable connector head lets a field tech swap the cable sub-assembly without disturbing the actuator mounting. The switch is UL and CSA listed and is designed to EN/IEC 60204-1 and EN/IEC 60947-5-1 — the 60947-5-1 standard governs low-voltage switching devices for control circuits, and 60204-1 covers electrical equipment on machines, so the approvals cover both North American panel builders and EU machine builders specifying under the machinery directive.
