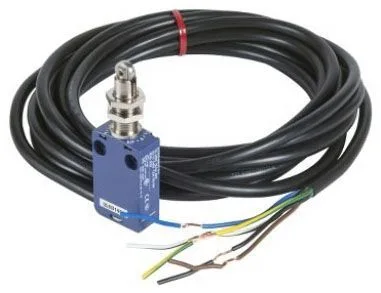

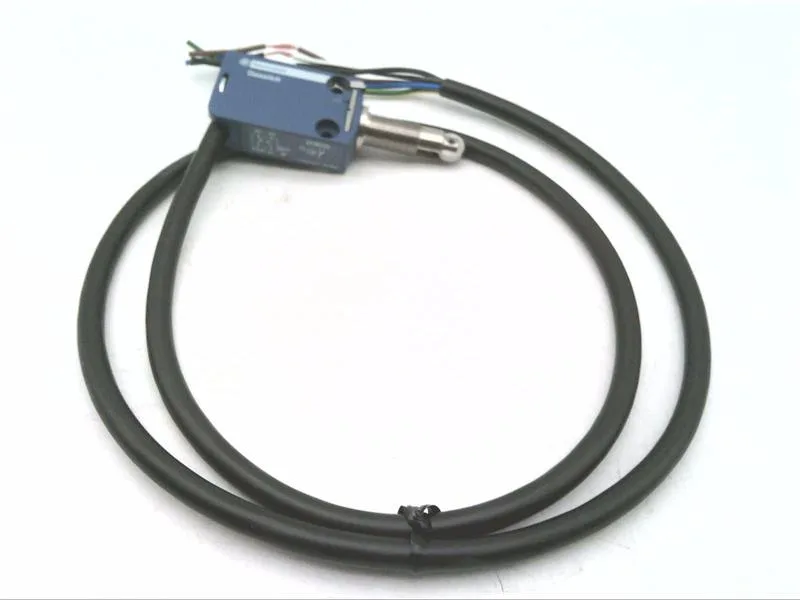

Schneider Electric XCMD25F2L1
MPNXCMD25F2L1
SQUARE D XCMD25F2L1: LIMIT SWITCH 240VAC 1.5A METAL XCMD
$33.02Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Type | HEAVY DUTY, MINIATURE, MODULAR |
| Operation type | SPRING RETURN |
| Connection type | 1 M PRE WIRED REMOVABLE CABLE CONNECTOR |
| Actuator (Head type) | M12 THREADED ROLLER PLUNGER HEAD |
| Contact configuration | 1NO-1NC SLOW MAKE/BREAK |
| Enclosure | NEMA 1/2/4/4X/6/12/13, IP66, IP67, IP68 |
| Operating temperature | -13 TO 158 DEG F |
| Body material | ZAMAK[R] ZINC ALLOY |
| Approval | UL, CSA |
| Model | XCMD |
| Category | Miniature & Snap Action Limit Switches |
| Pretravel | 3.1 MM |
All specifications+8 ▾
| Parameter | Value |
|---|---|
| Manufacturer | Square D Co. |
| Sub-Category | General/Heavy Duty Limit Switch |
| Contact rating | 240 VAC 1.5 AMPERE, 250 VDC 0.1 AMPERE |
| Operating force | 7.87 LB |
| Manufacturer brand | Square D Co. |
| Product description | Telemecanique XCMD25F2L1 Limit Switch 240Vac 1.5A Metal Xcmd |
| Additional information | APPLICABLE STANDARD EN/IEC 60204-1, EN/IEC 60947-5-1 |
| Full technical description | Heavy Duty, Miniature, Modular Type; 1NO-1NC Slow Make/Break Contact Configuration; 1 M Pre Wired Removable Cable Connector Connection Type; Spring Return Operation Type; 240 VAC 1.5 Ampere, 250 VDC 0.1 Ampere Contact Rating; UL, CSA Approval; NEMA 1/2/4/4X/6/12/13, IP66, IP67, IP68 Enclosure; ZAMAK[R] Zinc Alloy Body Material; -13 to 158 Deg F Operating Temperature; 7.87 lb Operating Force; M12 Threaded Roller Plunger Head Actuator/Head Type; 3.1 mm Pretravel; OSISWITCH[R] Brand; Applicable Standard En/Iec 60204-1, En/Iec 60947-5-1; XCMD Model |
MPN
XCMD25F2L1
