Schneider Electric XCPR2121P20 — Limit Switches

Schneider XCPR2121P20 Limit Switch, 1NC+1NO, IP66/IP67

MPNXCPR2121P20

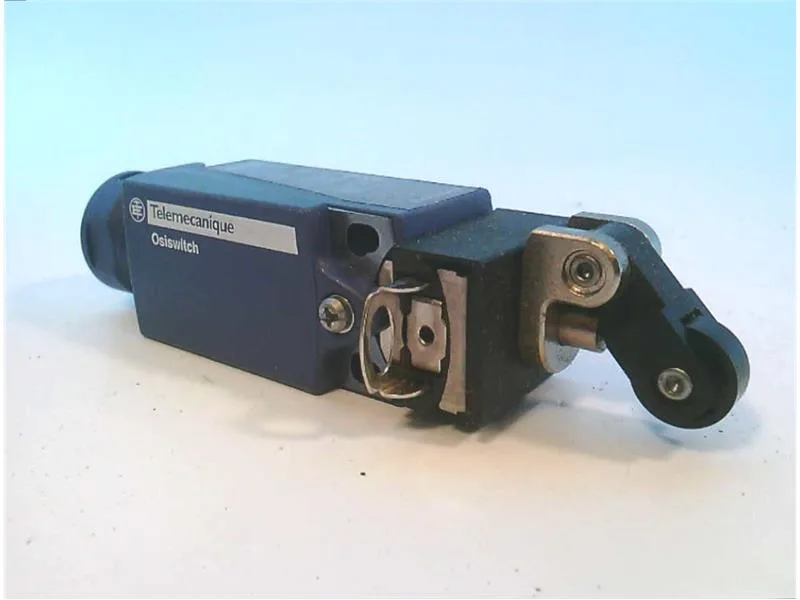

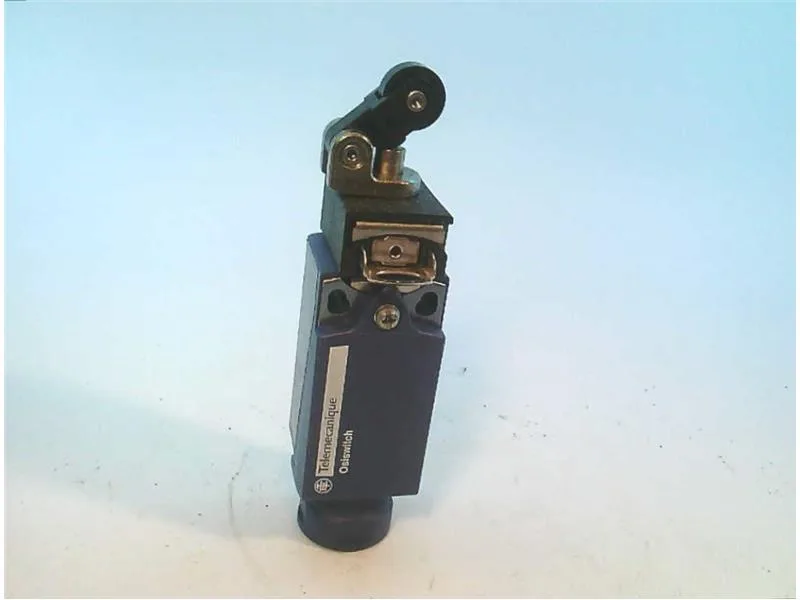

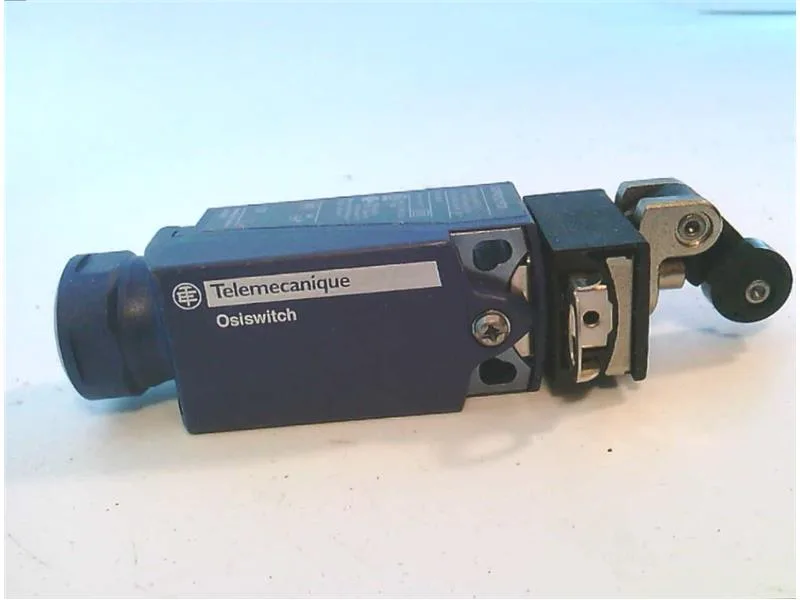

Schneider Electric Osisense XC XCPR2121P20 general duty limit switch, spring-return roller lever plunger, lateral approach 1 direction, 1 NC + 1 NO, screw-clamp terminals, IP66/IP67.

$22.86Ref. price · indicative, final on quote
Schneider Electric XCPR2121P20 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

XCPR2121P20 specifications
ParameterValue
TypeLIMIT SWITCH
Poles2
Contact configuration1 NC + 1 NO
MountingBY THE BODY
ConnectionSCREW-CLAMP TERMINALS 1 X 0.34...2 X 1.5 MMA
Operating temperature-25-70 AC
Standard25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,CSA-UL,IEC 60204-1-UL 508-EN 60947-5-1-CSA C22.2 NO 14-IEC 60947-5-1-EN 60204-1,IK04 EN 50102,IP66 IEC 60529-IP67 IEC 60529
Dimensions30 MM,31 MM,65-65 MM
ActuatorLATERAL APPROACH, 1 DIRECTION,LINEAR,SPRING RETURN ROLLER LEVER PLUNGER THERMOPLASTIC
CategoryGeneral Duty Limit Switches
Sub brandSTANDARD FORMAT
Sub-CategoryGeneral/Heavy Duty Limit Switch
Manufacturer brandSquare D Co.
Product descriptionTelemecanique XCPR2121P20 Xcpr Limit Switch + Options
Closed contact resistance25 MOHM IEC 60255-7 CATEGORY 3
Proposition 65 warningWARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product details

Spring-return roller lever, 1NC+1NO, IP66/IP67

The XCPR2121P20 is a general duty limit switch from the Osisense XC range, with a spring-return roller lever plunger actuated by lateral approach in one direction. It carries one normally-closed and one normally-open contact pair, giving you a positive-break NC for safety circuits and a NO for status feedback. Rated IP66 and IP67 per IEC 60529, the switch body and actuator seal against hose-directed water and temporary immersion — suitable for washdown zones and outdoor enclosures where the switch sees direct spray or standing water.

Standards compliance and mounting

Vibration resistance is 25 GN at 10–500 Hz (IEC 60068-2-6) and shock resistance is 50 GN for 11 ms (IEC 60068-2-27). Mounting is by the body, with screw-clamp terminals accepting 1 x 0.34 mm² up to 2 x 1.5 mm².

MPN
XCPR2121P20
