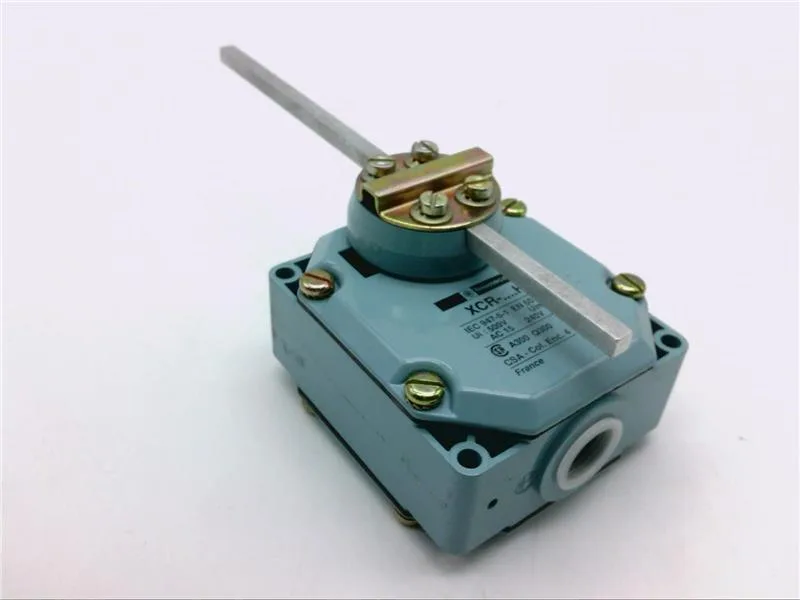

Schneider Electric XCRF17H2
MPNXCRF17H2
SQUARE D XCRF17H2: LIMIT SWITCH 240VAC 10AMP XCR +OPTIONS
$168.91Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Operation type | CLOCKWISE/COUNTER CLOCKWISE, MAINTAINED, SNAP ACTION |
| Connection type | M20 X 1.5 CABLE GLAND/SCREW CLAMP TERMINAL |
| Actuator (Head type) | CROSS/T METAL ROD STAY PUT |
| Contact configuration | SPDT, 1NO-1NC SLOW MAKE/DOUBLE BREAK |
| Enclosure | IP54, IP65, IP66 |
| Operating temperature | -13 TO 158 DEG F |
| Body material | ZAMAK[R] ZINC ALLOY |
| Approval | CSA |
| Model | XCR |
| Category | Severe Duty Limit Switches |
| Manufacturer | Square D Co. |
| Sub-Category | General/Heavy Duty Limit Switch |
| Contact rating | 240 VAC 3 AMPERE, 250 VDC 0.27 AMPERE |
| Manufacturer brand | Square D Co. |
| Product description | Telemecanique XCRF17H2 Limit Switch 240Vac 10Amp Xcr +Options |
| Additional information | APPLICABLE STANDARD EN/IEC 60204-1, EN/IEC 60947-5-1, VDE 0660-200 |
| Full technical description | SPDT, 1NO-1NC Slow Make/Double Break Contact Configuration; M20 X 1.5 Cable Gland/Screw Clamp Terminal Connection Type; Clockwise/Counter Clockwise, Maintained, Snap Action Operation Type; 240 VAC 3 Ampere, 250 VDC 0.27 Ampere Contact Rating; CSA Approval; IP54, IP65, IP66 Enclosure; ZAMAK[R] Zinc Alloy Body Material; -13 to 158 Deg F Operating Temperature; Cross/T Metal Rod Stay Put Actuator/Head Type; OSISWITCH[R] Brand; Applicable Standard En/Iec 60204-1, En/Iec 60947-5-1, VDE 0660-200; XCR Model |
| Proposition 65 warning | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
MPN
XCRF17H2
