Schneider Electric XCSTE7511 — Safety Interlock Switches

Schneider Electric XCSTE7511

MPNXCSTE7511

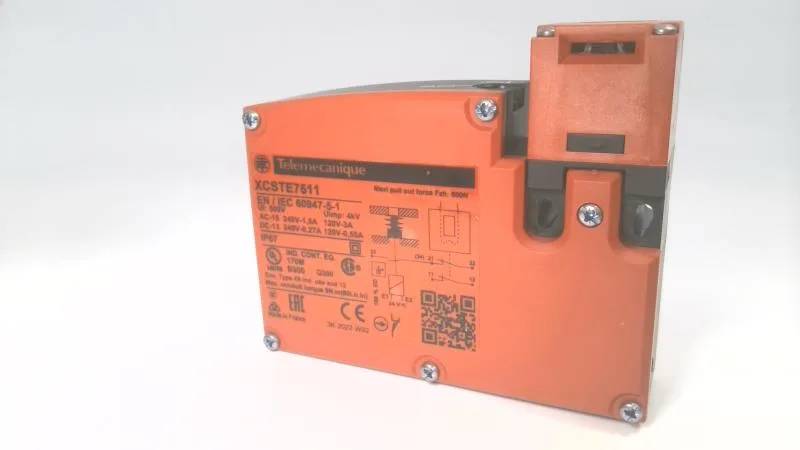

Telemecanique XCSTE7511 Safety Interlock 240Vac 5A T-Xcs

$81.28Ref. price · indicative, final on quote
Schneider Electric XCSTE7511 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

XCSTE7511 — Mechanical
ParameterValue
Dimensions110 MM,33 MM,94-94 MM
XCSTE7511 — Environmental
ParameterValue
Operating temperature range-25-60 AC
XCSTE7511 — Other specifications
ParameterValue
TypeKEY OPERATED TURRET HEAD,SAFETY SWITCH
Standard10 GN 11 MS IEC 60068-2-27,5 GN 10-500 HZ)IEC 60068-2-6,EN/IEC 60204-1-CSA C22.2 NO 14-EN/ISO 12100-UL 508-EN/IEC 60947-5-1-EN 1088/ISO 14119,IP67 EN/IEC 60529 AND EN/IEC 60947-5-1,UL-CSA,CLASS II EN/IEC 61140
Sub brandXCSTE
ConnectionTERMINAL 1 X 0.5...2 X 1.5 MMA WITH OR WITHOUT CABLE END
ApplicationKEY OPERATED TURRET HEAD
Voltage rating0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1-3 A 120 V, AC-15, B300 EN/IEC 60947-5-1-1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1,24 V - 20...10
Amperage rating6 A
Operating cycles10 CYC/MN FOR MAXIMUM DURABILITY
Special featuresLOCKING ON ENERGISATION AND UNLOCKING ON DE-ENERGISATION OF SOLENOID
Product descriptionTelemecanique XCSTE7511 Safety Interlock 240Vac 5A T-Xcs
Contact configuration1 NC SLOW-BREAK),2 NC
MPN
XCSTE7511
