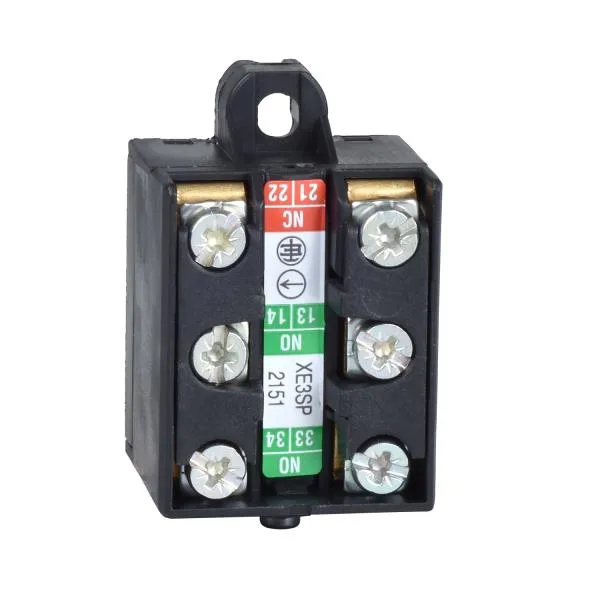

Schneider Electric XE3SP2151
MPNXE3SP2151
SQUARE D XE3SP2151: LIMIT SWITCH 3 CONTACT BLOCK 240VAC 3A XE3
$11.43Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Type | DIRECT OPENING |
Other specifications
| Parameter | Value |
|---|---|
| Used on | ZCD31/ZCKJD31/ZCKLD31/ZCKMD31/ZCP31/ZXKSD31/SERIES LIMIT SWITCH BODY |
| Sub-Category | Limit Switch Contact Block |
| Contact rating | 1.5 AMPERE AT 240 VAC, 0.1 AMPERE AT 250 VDC |
| Operation type | SNAP ACTION |
| Product description | Telemecanique XE3SP2151 Limit Switch 3 Contact Block 240Vac 3A Xe3 |
| Contact configuration | 2NO-1NC |
| Additional information | NUMBER OF POLES 3; TERMINAL TYPE SCREW CLAMP; WITH SILVER PLATED CONTACT |
| Full technical description | Direct Opening Type; ZCD31/ZCKJD31/ZCKLD31/ZCKMD31/ZCP31/ZXKSD31/Series Limit Switch Body Used on; 2NO-1NC Contact Configuration; Snap Action Operation Type; 1.5 Ampere at 240 VAC, 0.1 Ampere at 250 VDC Contact Rating; OSISWITCH[R] Brand; Number of Poles 3; Terminal Type Screw Clamp; With Silver Plated Contact |
| Proposition 65 warning | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
MPN
XE3SP2151
