Schneider Electric XMLA035A2C11
MPNXMLA035A2C11

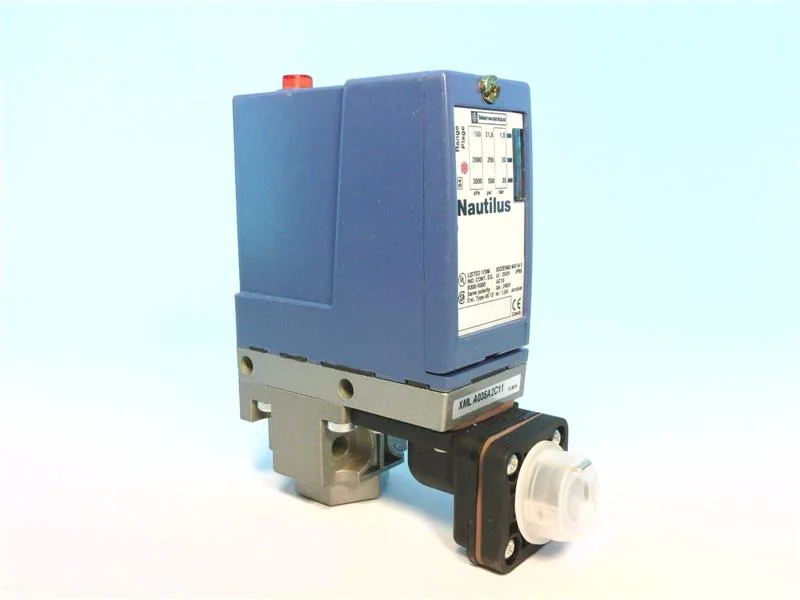

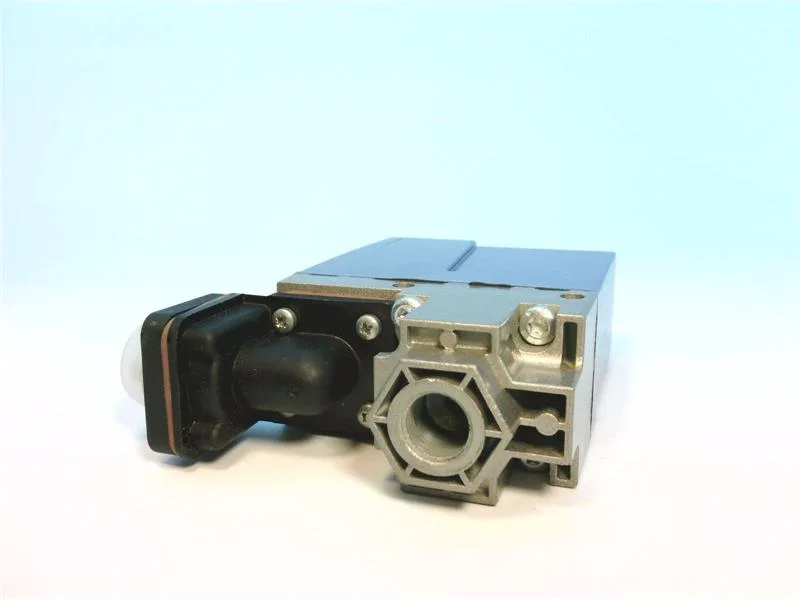

SQUARE D XMLA035A2C11: PRESSURE SWITCH
$63.50Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | NON ADJUSTABLE DIFFERENTIAL |
| Operator type | BUNA N DIAPHRAGM |
| Connection type | 1/4 INCH BSP FEMALE |
| Enclosure | IP65 |
| Enclosure material | ZINC ALLOY |
| Maximum surge pressure rating | 1160 PSI |
| Approval | UL, CSA, CE, RINA, GL |
| Model | XML |
| Category | Pressure Switches |
| Manufacturer | Square D Co. |
| Sub-Category | Pressure Switch |
| Contact rating | 300 VAC 5 AMPERE, 300 VDC 1 AMPERE |
All specifications+7 ▾
| Parameter | Value |
|---|---|
| Pressure media | AIR, FRESH WATER, HYDRAULIC OIL, SEA WATER |
| Manufacturer brand | Square D Co. |
| Product description | Telemecanique XMLA035A2C11 Pressure Switch |
| Additional information | WITH SCALE |
| Operating pressure rating | 21.75 TO 507.5 PSI |
| Full technical description | Non Adjustable Differential Type; 1160 psi Max. Surge Pressure Rating; 1/4 Inch BSP Female Connection Type; Zinc Alloy Enclosure Material; 300 VAC 5 Ampere, 300 VDC 1 Ampere Contact Rating; UL, CSA, CE, RINA, GL Approval; IP65 Enclosure; Buna N Diaphragm Operator Type; 18.12 psi Differential Pressure Rating; Air, Fresh Water, Hydraulic Oil, Sea Water Pressure Media; 21.75 to 507.5 psi Operating Pressure Rating; NAUTILUS[R] Brand; With Scale; XML Model |
| Differential pressure rating | 18.12 PSI |
MPN
XMLA035A2C11
