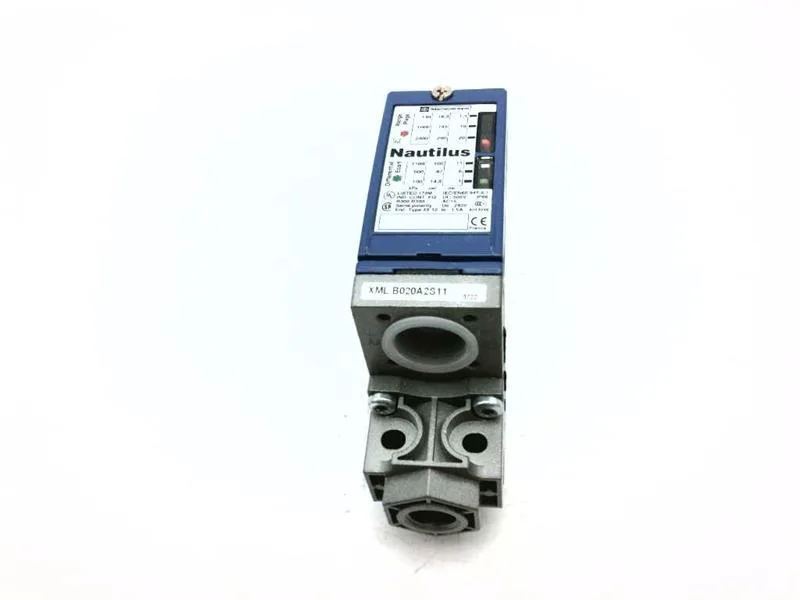

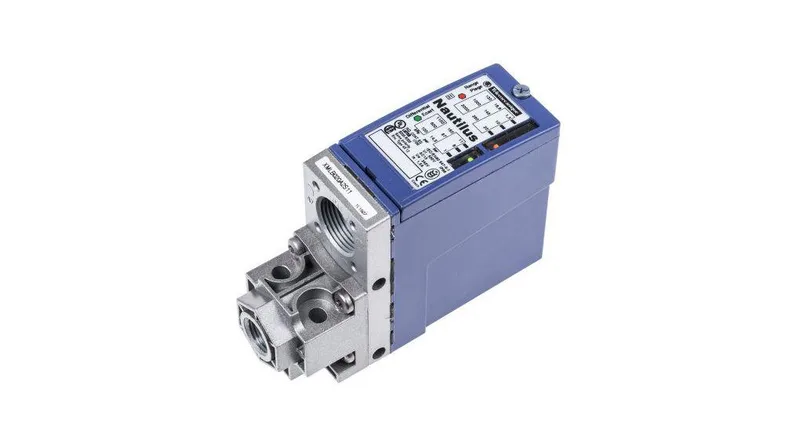

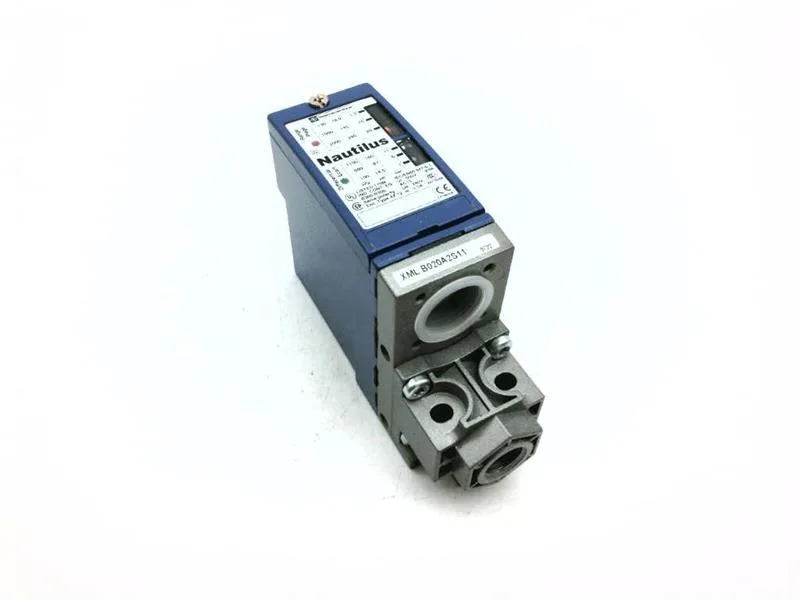

Schneider Electric XMLB020A2S11
MPNXMLB020A2S11
Pressure Sensor, 1.3bar Min, 20bar Max, Relay Output, Differential Reading
$78.74Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | ADJUSTABLE DIFFERENTIAL |
| Operator type | BUNA N DIAPHRAGM |
| Connection type | 1/4 INCH BSP FEMALE |
| Enclosure | IP66 |
| Enclosure material | ZINC ALLOY |
| Maximum surge pressure rating | 652.5 PSI |
| Approval | UL, CSA, CE, RINA, GL |
| Model | XML |
| Category | Pressure Switches |
| Manufacturer | Square D Co. |
| Sub-Category | Pressure Switch |
| Contact rating | 300 VAC 5 AMPERE, 300 VDC 1 AMPERE |
All specifications+8 ▾
| Parameter | Value |
|---|---|
| Pressure media | AIR, FRESH WATER, HYDRAULIC OIL, SEA WATER |
| Manufacturer brand | Square D Co. |
| Product description | Telemecanique XMLB020A2S11 Pressure Switch |
| Additional information | WITH SCALE |
| Operating pressure rating | 18.9 TO 290 PSI |
| Full technical description | Adjustable Differential Type; 652.5 psi Max. Surge Pressure Rating; 1/4 Inch BSP Female Connection Type; Zinc Alloy Enclosure Material; 300 VAC 5 Ampere, 300 VDC 1 Ampere Contact Rating; UL, CSA, CE, RINA, GL Approval; IP66 Enclosure; Buna N Diaphragm Operator Type; 14.5 to 23.2 psi Differential Pressure Rating; Air, Fresh Water, Hydraulic Oil, Sea Water Pressure Media; 18.9 to 290 psi Operating Pressure Rating; NAUTILUS[R] Brand; With Scale; XML Model |
| Proposition 65 warning | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Differential pressure rating | 14.5 TO 23.2 PSI |
MPN
XMLB020A2S11
