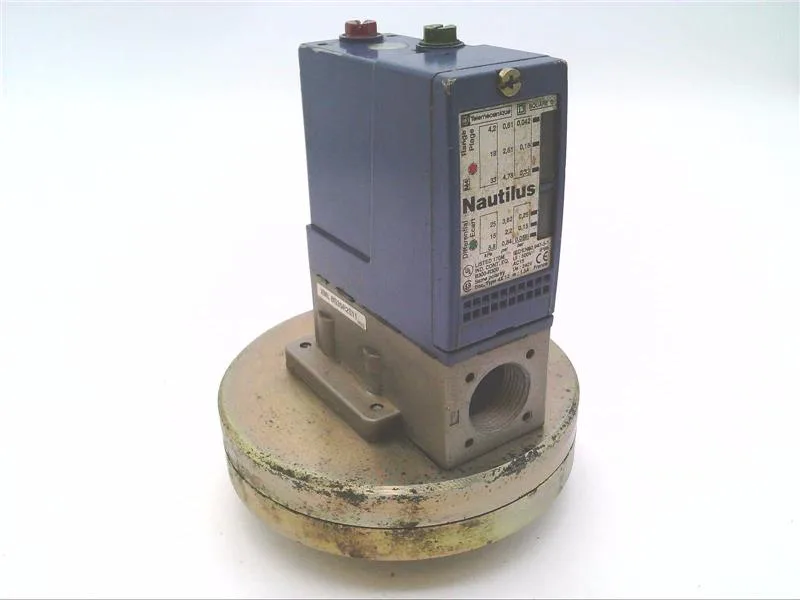

Schneider Electric XMLBS35R2S11
MPNXMLBS35R2S11
Telemecanique XMLBS35R2S11 Pressure Switch Xml + Options|SQUARE D XMLBS35R2S11: PRESSURE SWITCH XML + OPTIONS
$175.26 – $393.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | ADJUSTABLE DIFFERENTIAL |
| Operator type | BUNA N DIAPHRAGM |
| Connection type | 1/4 INCH BSP FEMALE |
| Enclosure | IP66 |
| Enclosure material | ZINC ALLOY |
| Maximum surge pressure rating | 543.75 PSI |
| Approval | UL, CSA, CE, RINA, GL |
| Model | XML |
| Category | Pressure Switches |
| Manufacturer | Square D Co. |
| Sub-Category | Pressure Switch |
| Contact rating | 300 VAC 5 AMPERE, 300 VDC 1 AMPERE |
All specifications+7 ▾
| Parameter | Value |
|---|---|
| Pressure media | AIR, HYDRAULIC OIL |
| Manufacturer brand | Square D Co. |
| Product description | Telemecanique XMLBS35R2S11 Pressure Switch Xml + Options |
| Additional information | WITH SCALE |
| Operating pressure rating | 0.61 TO 4.78 PSI |
| Full technical description | Adjustable Differential Type; 543.75 psi Max. Surge Pressure Rating; 1/4 Inch BSP Female Connection Type; Zinc Alloy Enclosure Material; 300 VAC 5 Ampere, 300 VDC 1 Ampere Contact Rating; UL, CSA, CE, RINA, GL Approval; IP66 Enclosure; Buna N Diaphragm Operator Type; 0.48 to 0.84 psi Differential Pressure Rating; Air, Hydraulic Oil Pressure Media; 0.61 to 4.78 psi Operating Pressure Rating; NAUTILUS[R] Brand; With Scale; XML Model |
| Differential pressure rating | 0.48 TO 0.84 PSI |
MPN
XMLBS35R2S11
