Schneider Electric XMLCS35R2S13
MPNXMLCS35R2S13

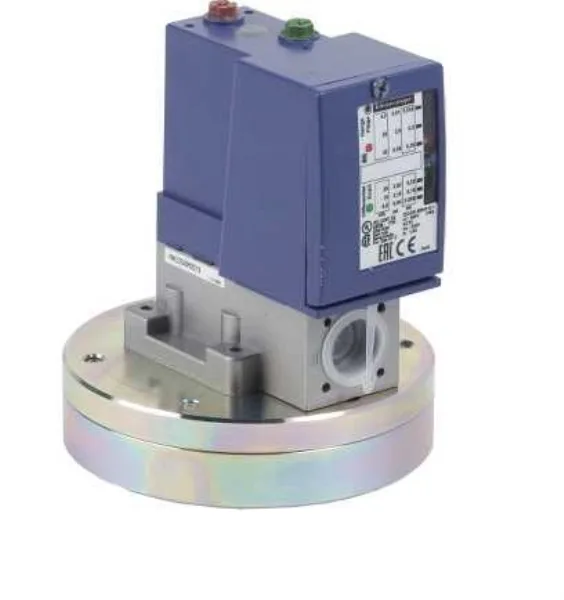

Telemecanique XMLCS35R2S13 Pressure Switch|SQUARE D XMLCS35R2S13: PRESSURE SWITCH
$246.38 – $486.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | ADJUSTABLE DIFFERENTIAL |
| Operator type | BUNA N DIAPHRAGM |
| Connection type | 1/4 INCH FNPT |
| Enclosure | IP66 |
| Enclosure material | ZINC ALLOY |
| Maximum surge pressure rating | 543.75 PSI |
| Approval | UL, CSA, CE, RINA, GL |
| Model | XML |
| Category | Pressure Switches |
| Manufacturer | Square D Co. |
| Sub-Category | Pressure Switch |
| Contact rating | 300 VAC 5 AMPERE, 300 VDC 1 AMPERE |
All specifications+7 ▾
| Parameter | Value |
|---|---|
| Pressure media | AIR, HYDRAULIC OIL |
| Manufacturer brand | Square D Co. |
| Product description | Telemecanique XMLCS35R2S13 Pressure Switch |
| Additional information | WITH SCALE |
| Operating pressure rating | 0.61 TO 4.78 PSI |
| Full technical description | Adjustable Differential Type; 543.75 psi Max. Surge Pressure Rating; 1/4 Inch FNPT Connection Type; Zinc Alloy Enclosure Material; 300 VAC 5 Ampere, 300 VDC 1 Ampere Contact Rating; UL, CSA, CE, RINA, GL Approval; IP66 Enclosure; Buna N Diaphragm Operator Type; 0.58 to 1.27 psi Differential Pressure Rating; Air, Hydraulic Oil Pressure Media; 0.61 to 4.78 psi Operating Pressure Rating; NAUTILUS[R] Brand; With Scale; XML Model |
| Differential pressure rating | 0.58 TO 1.27 PSI |
MPN
XMLCS35R2S13
