Schneider Electric XMLG016D23
MPNXMLG016D23

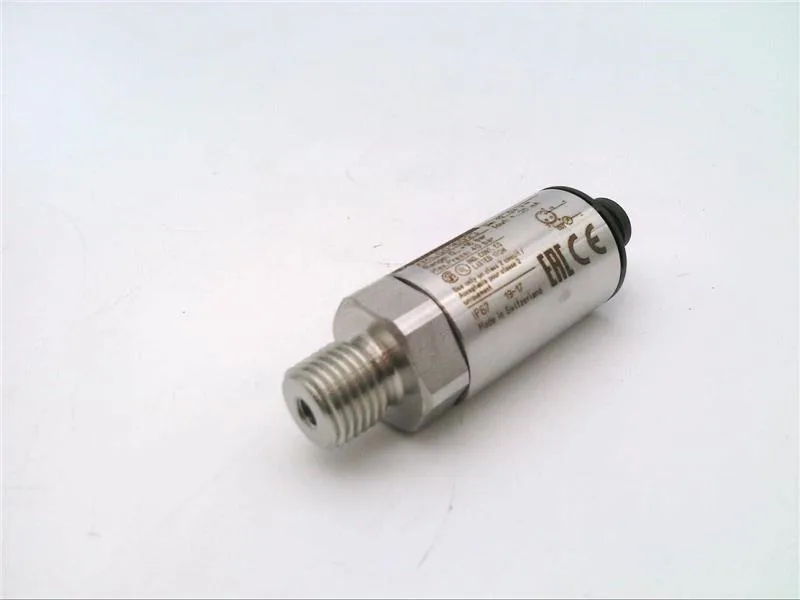

Telemecanique XMLG016D23 Pressure Transmitter 232 Psi 4-20Ma M12 1/4""M Ip|SQUARE D XMLG016D23: PRESS TRANS 232 PSI 4-20MA M12 1/4""M IP
$162.56 – $240.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Electronic |
| Voltage rating | 12/24 VDC |
| Output current signal range | 4 to 20 Milliampere |
| Enclosure | NEMA 4, IP66/IP67 |
| Process connection | 1/4 Inch Male NPT |
| Pressure measuring range | 0 to 232.1 PSI |
| Operating temperature | -15 to 85 Deg C |
| Approval | UL, CSA, CE |
| Dimensions | 22.8 MM Dia x 58.1 MM L |
| Accuracy | +/- 0.3 Percent |
| Category | Pressure Switches |
| Fill fluid | Ceramic, FPM, AISI 303 Stainless Steel |
All specifications+7 ▾
| Parameter | Value |
|---|---|
| Manufacturer | Square D Co. |
| Sub-Category | Pressure Transmitter |
| Manufacturer brand | Square D Co. |
| Product description | Telemecanique XMLG016D23 Pressure Transmitter 232 Psi 4-20Ma M12 1/4""M Ip |
| Additional information | Number of Wires 2; Electrical Connection 3-Pin (1) M12 Male Connector |
| Full technical description | Electronic Type; 22.8 mm Dia X 58.1 mm L Size; 232.1 Max. Operating Pressure in psi; +/- 0.3 Percent Accuracy; UL, CSA, CE Approval; 12/24 VDC Voltage Rating; NEMA 4, IP66/IP67 Enclosure; -15 to 85 Deg C Operating Temperature; 1/4 Inch Male NPT Process Connection; 4 to 20 Milliampere Output Current Signal Range; Ceramic, FPM, AISI 303 Stainless Steel Fill Fluid; 0 to 232.1 psi Pressure Measuring Range; OSISENSE[R] Brand; Number of Wires 2; Electrical Connection 3-Pin (1) M12 Male Connector |
| Maximum operating pressure in | 232.1 |
MPN
XMLG016D23
