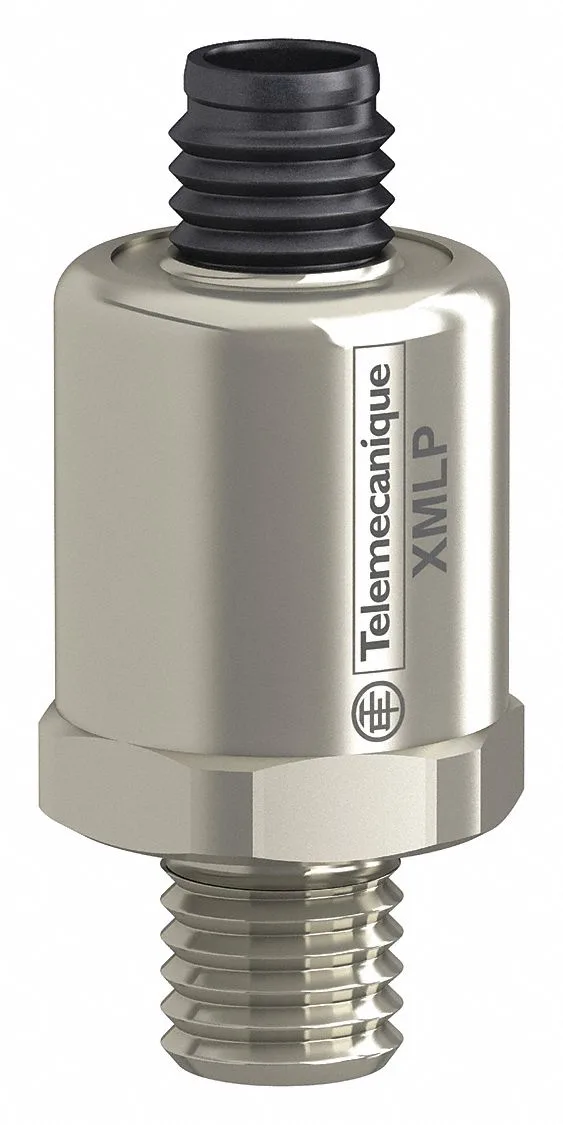

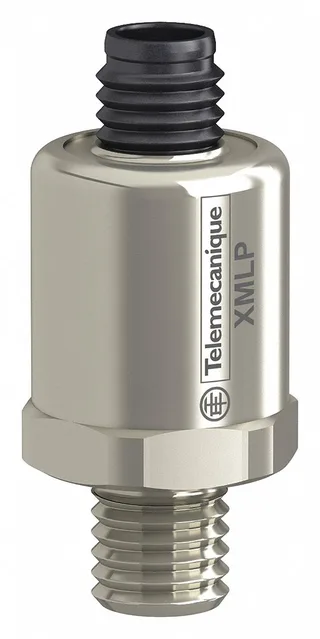

Schneider Electric XMLP600PD230
MPNXMLP600PD230
Pressure Transmitter: 0 psi to 600 psi, 4 to 20mA DC, 4-Pin M12 Connector, 1/4 in Male NPT
$60.96Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | XMLP |
| For use with media type | Air 40° F to 275° F (-40°C to 135°C); Fresh Water 32°F to 275°F (0°C to 135°C); Gas 40°F to 275°F (-40°C to 135°C); Hydraulic Oil 40°F to 275°F (-40°C to 135°C); Refrigeration Fluid 40°F to 275°F (-40°C to 135°C) |
| Process connection type | NPT |
| Power required | 12 to 24V DC |
| IP rating | IP65; IP67; IP69K |
| Number of wires | 2 |
| Process connection | 1/4 in Male NPT |
| Electrical connections | 4-Pin M12 Connector |
| Process connection size | 1/4 in |
| Process connection gender | Male |
| Response time | 2 msec |
| Storage temperature range | -58°F to 212°F (-50°C to 100°C) |
All specifications+22 ▾
| Parameter | Value |
|---|---|
| Maximum operating temperature | 185 °F |
| Minimum operating temperature | -22 °F |
| Weight | 0.19 lb |
| Overall width | 1.02 in |
| Overall height | 2.33 in |
| Housing material | Stainless Steel |
| Wetted materials | Steel |
| Standards | CE; cULus Listed; EAC; EN/IEC 61326-2-3; EU RoHS Directive; NSF ANSI 61; RCM; REACH Regulation; RoHS |
| Brand | TELEMECANIQUE SENSORS |
| Output | 4 to 20mA DC |
| Features | Circularity Profile; Environmental Disclosure; EU RoHS Directive; Green Premium Product; Mercury Free; REACh Free of SVHC; RoHS Exemption Information |
| Overpressure | 1,800 psi |
| Thermal error | ±0.02% |
| Burst pressure | 3,600 psi |
| Overall length | 1.42 in |
| Pressure range | 0 psi to 600 psi |
| Pressure units | psi |
| Maximum pressure | 600 psi |
| Minimum pressure | 0 psi |
| Intrinsically safe | No |
| Full-Scale accuracy | ±0.5% of Full Scale |
| Explosion (Fire proof) | No |
