Schneider Electric XPSAC3721P

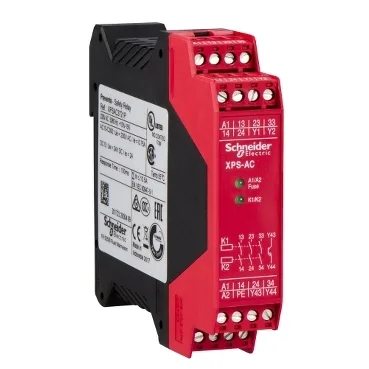

Schneider XPSAC3721P Preventa safety module, 230 V AC, discontinued

MPNXPSAC3721P
Obsolete

Schneider Electric Preventa XPSAC3721P safety module, emergency stop monitoring, 230 V AC supply, 3 NO relay outputs, 6 A switching current, IP20, PL e / SILCL 3, discontinued.

$109.22Ref. price · indicative, final on quote
Schneider Electric XPSAC3721P datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

XPSAC3721P key specifications
ParameterValue
Output signalRelay instantaneous opening, 3 NO circuit(s), volt-free
Type of startUnmonitored
Range of productPreventa Safety automation
Product or component typePreventa safety module
Minimum output voltage16 V for relay output
Supply voltage230 V AC - 15...10 %
Coil voltage230 V
Voltage300 V (pollution degree 2) conforming to IEC 60947-5-1 300 V (pollution degree 2) conforming to DIN VDE 0110 part 1
[Uimp] rated impulse withstand voltage4 kV overvoltage category III conforming to IEC 60947-5-1 4 kV overvoltage category III conforming to DIN VDE 0110 part 1
Breaking capacity1.5 A at 24 V (DC-13) time constant: 50 ms for relay output
Current consumption25 mA at 230 V AC on power supply
Minimum output current10 mA for relay output

All specifications

XPSAC3721P additional specifications
ParameterValue
Output thermal current6 A per relay for relay output
[Ith] conventional free air thermal current10.5 A
Maximum power consumption in6 VA AC
Supply frequency50/60 Hz
IP degree of protectionIP20 (terminals) conforming to EN/IEC 60529 IP40 (enclosure) conforming to EN/IEC 60529
Mounting support35 mm symmetrical DIN rail
Connections - terminalsCaptive screw clamp terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² flexible with cable end, with double bezel Captive screw clamp terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² solid with cable end, with double bezel Captive screw clamp terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, with double bezel Captive screw clamp terminals, removable terminal block, 2 x 0.2...2 x 1 mm² solid with cable end, with double bezel Captive screw clamp terminals, removable terminal block, 2 x 0.2...2 x 1.5 mm² flexible with cable end, with double bezel Captive screw clamp terminals, removable terminal block, 2 x 0.25...2 x 1 mm² flexible with cable end, with double bezel Captive screw clamp terminals, removable terminal block, 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel
Maximum response time on input open100 ms
StandardsEN/ISO 13850 EN 60204-1 EN/IEC 60947-5-1 EN 1088/ISO 14119
Safety levelCan reach PL e/category 4 conforming to EN/ISO 13849-1 Can reach SILCL 3 conforming to EN/IEC 62061
Local signalling2 LEDs
Function of moduleEmergency stop Switch monitoring
Safety module nameXPSAC
Associated fuse rating4 A gG or gL for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200 6 A fast blow for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200
Safety reliability dataMTTFd = 210.4 years conforming to EN/ISO 13849-1 DC > 99 % conforming to EN/ISO 13849-1 PFHd = 3.56E-9 1/h conforming to EN/IEC 62061
Safety module applicationFor emergency stop and switch monitoring
Number of additional circuits1 solid state output
Ambient air temperature for storage-25...85 °C
Ambient air temperature for operation-10...55 °C

Product details

Overview

The XPSAC3721P is a Schneider Preventa safety module dedicated to emergency stop and switch monitoring, operating on a 230 V AC supply and delivering three normally-open volt-free relay outputs rated for 6 A switching current. It achieves PL e / category 4 per EN/ISO 13849-1 and SILCL 3 per EN/IEC 62061, with an MTTFd of 210.4 years and PFHd of 3.56E-9 1/h, backed by CSA, UL, and TÜV certifications.

Schneider has discontinued the XPSAC3721P; remaining units are available through surplus and broker channels. An RFQ confirms current availability and lead time for line-down or last-time-buy needs.

MPN
XPSAC3721P
