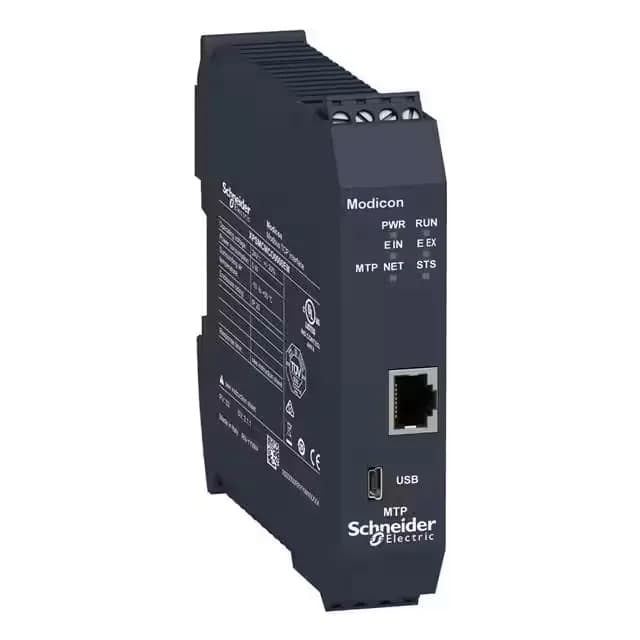

Schneider Electric XPSMCMCO0000EM

Schneider XPSMCMCO0000EM Modicon MCM Modbus TCP/IP Module, O

MPNXPSMCMCO0000EM
Obsolete

Schneider Electric Modicon MCM XPSMCMCO0000EM, Non-safe communication module, Modbus TCP/IP, 22.5 mm wide, DIN rail mount, 24 V DC, CE, IP20, Obsolete.

$215.90Ref. price · indicative, final on quote
Schneider Electric XPSMCMCO0000EM datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

XPSMCMCO0000EM key specifications
ParameterValue
Connector typeRJ45
Range of productModicon MCM
Product or component typeNon-safe communication module
Supply voltage24 V - 20...20 % DC
Current consumption0.125 mA
Power dissipation in3 W
IP degree of protectionIP20
Communication port protocolModbus TCP/IP
Mounting supportOmega 35 mm DIN rail EN 50022
Cable cross section0.0003...0.002 in² (0.2...1.5 mm²) - AWG 24...AWG 16 flexible without cable end 0.0003...0.004 in² (0.2...2.5 mm²) - AWG 24...AWG 14 flexible without cable end 0.0004...0.002 in² (0.25...1 mm²) - AWG 23...AWG 18 flexible with cable end, without bezel 0.0004...0.004 in² (0.25...2.5 mm²) - AWG 23...AWG 14 flexible with cable end, with bezel 0.0004...0.004 in² (0.25...2.5 mm²) - AWG 23...AWG 14 flexible with cable end, without bezel 0.0008...0.002 in² (0.5...1.5 mm²) - AWG 20...AWG 16 flexible with cable end, with double bezel 0.0003...0.002 in² (0.2...1 mm²) - AWG 24...AWG 18 solid without cable end 0.0003...0.004 in² (0.2...2.5 mm²) - AWG 24...AWG 14 solid without cable end
Connections - terminals2 captive screw clamp terminals, removable terminal block
Maximum cable distance between devices328.08 ft (100 m)

All specifications

XPSMCMCO0000EM additional specifications
ParameterValue
Pollution degree2
Shock resistance10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
Relative humidity10...95 %
Operating altitude6561.68 ft (2000 m)
Vibration resistance+/-0.35 mm (f= 10...55 Hz) conforming to IEC 61496-1
Depth4.5 in (114.5 mm)
Width0.9 in (22.5 mm)
Height3.9 in (99 mm)
CategoryUS1SAF222477
Insulation250 V AC between power supply and housing IEC 61800-5-1
Service life20 year(s)
Number of port1
Quality labelsCE
Local signallingLED green PWR power ON LED green RUN operating LED red E IN internal error LED red E EX external error LED green/red NET connection state LED green/red STS communication status
Method of accessServer
Device short nameXPSMCM
Transmission rate10/100 Mbit/s
Overvoltage categoryII
Electromagnetic compatibilityElectrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2 Electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2 Susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3 Susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
Ambient air temperature for storage-4...185 °F (-20...85 °C)
Ambient air temperature for operation14...131 °F (-10...55 °C)

Product details

The Schneider XPSMCMCO0000EM is a Modicon MCM non-safe communication module that adds Modbus TCP/IP connectivity for diagnostics on a safety bus system. It occupies a single 22.5 mm (0.9 in) DIN-rail slot, powered at 24 V DC with 3 W dissipation. The module provides one RJ45 port at 10/100 Mbit/s and is rated for a 20-year service life under IEC 61496-1 shock and vibration conditions.

The XPSMCMCO0000EM is marked obsolete by Schneider Electric. There is no official successor listed in the available records. For replacements or spares, the part is only available through surplus or broker channels. Sourcing is on an RFQ basis — expect limited availability as stocks deplete.

Mounts on 35 mm DIN rail per EN 50022 with removable screw terminal accepting 0.2–2.5 mm² conductors, and is IP20 with a max cable run of 100 m (328.08 ft).

Frequently asked questions

What are the key dimensions and mounting requirements?

The module is 22.5 mm wide (0.9 in), 99 mm high (3.9 in), and 114.5 mm deep (4.5 in). It clips onto a 35 mm DIN rail.

How do I source this obsolete part?

The part is sourced through surplus inventory and broker networks. Submit an RFQ for availability and pricing; there is no standard lead time.
