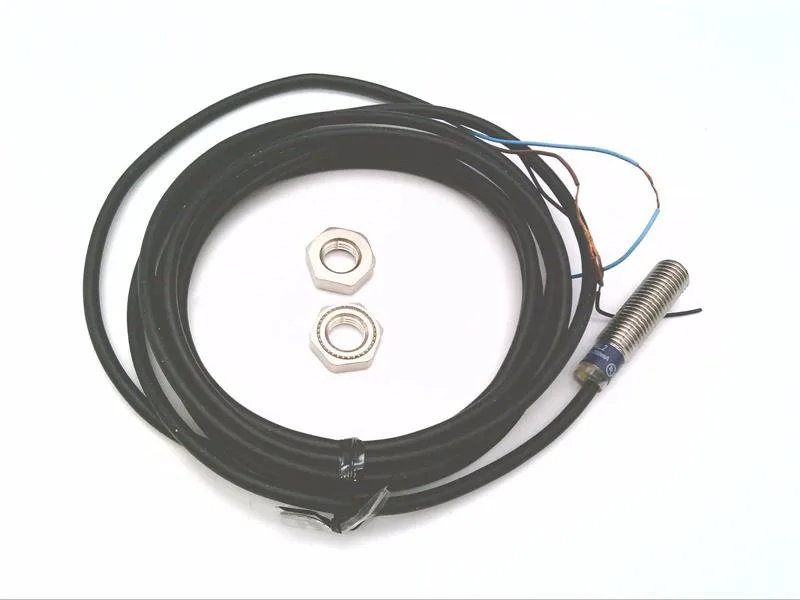

2.5 mm flush sensing in an 8 mm barrel
The XS108B3PAL2 detects ferrous targets at 2.5 mm with a flush-mount (shielded) construction, meaning the barrel face can be level with the mounting surface — no dead zone around the sensor head for machine frames or fixturing plates. The 8 mm nickel-plated brass barrel and PPS sensing face hold IP65/67, so this sensor survives washdown and coolant splash in tight machine cavities where a 12 mm or 18 mm barrel won't fit.
Switching speed and loop compatibility
Rated switching frequency of 2500 Hz means the output can catch parts moving past at line rate — above that, the PLC input filter must be set fast enough to not miss edges. PNP normally-open output at 200 mA load current sinks into a standard 24 VDC PLC input module; the 3-wire 2 m PVC cable lands directly in the terminal strip without an interposing relay for most digital inputs. Operating voltage range of 12 to 24 VDC covers nominal 24 V control loops with margin for brownout conditions down to 12 V.
Lifecycle and sourcing for the BOM line
Carries UL, CSA, and CE approvals, so it qualifies for panels shipping to North American and European markets without a separate certification review.
