Schneider Electric XS108BLNAL2

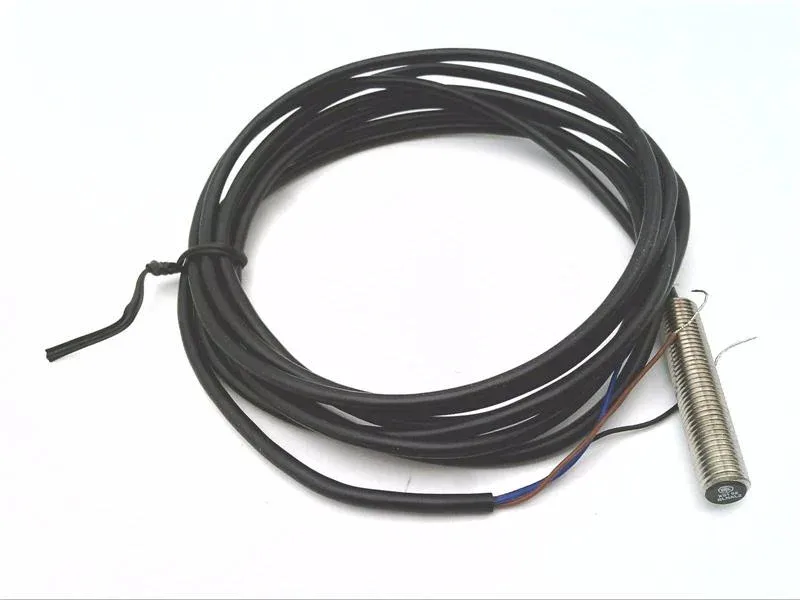

Telemecanique XS108BLNAL2 Inductive Proximity Sensor, M8 Shi

MPN XS108BLNAL2

Telemecanique Sensors XS1 series, XS108BLNAL2 inductive cylindrical proximity sensor, M8 threaded shielded, NPN NO, 2 mm sensing distance, 12-24V DC, 200 mA, IP67, prewired 2 m cable.

$9.14 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

XS108BLNAL2 specifications
ParameterValue
SeriesXS1
Output circuit typeNPN
Supply voltageNot Rated ; 12-24 V DC
IP ratingIP67
Body finishNickel Plated
Sensor diameter8 mm
Sensor body styleCylindrical

Product details

The Telemecanique XS108BLNAL2 is a shielded M8 inductive proximity sensor from the XS1 series, delivering a 2 mm sensing distance with an NPN normally-open output — a common choice for detecting ferrous targets in tight spaces like gripper jaws or small transfer stations. Rated for 12-24V DC supply and 200 mA maximum load current, the sensor runs directly off a standard 24V PLC input card without external amplification. The 2 mm shielded face means it can be flush-mounted in metal without derating the sensing range — critical when the sensor pocket is drilled into a steel bracket. The IP67 brass body with nickel plating handles washdown and coolant splash on machine tools; the NEMA 4X rating adds corrosion resistance for food-processing zones where caustic cleaners are used. Prewired with a 2 m cable, bare-wire termination — no connector to lose or swap.

Approvals include UL Listed, CSA, CE, and RoHS — documentation for compliance audits is available with the shipment. The nickel-plated brass body and IP67 rating satisfy most industrial washdown and NEMA 4X requirements without additional enclosure protection.

Fit & Compatibility

The 8 mm diameter (M8 thread) and 42 mm overall height make this a drop-in replacement for any panel originally wired for an M8 shielded NPN sensor with a 2 m flying lead. The 3-wire NPN NO output matches the majority of 24V DC PLC digital inputs — no polarity swap or pull-up resistor needed.

MPN
XS108BLNAL2
