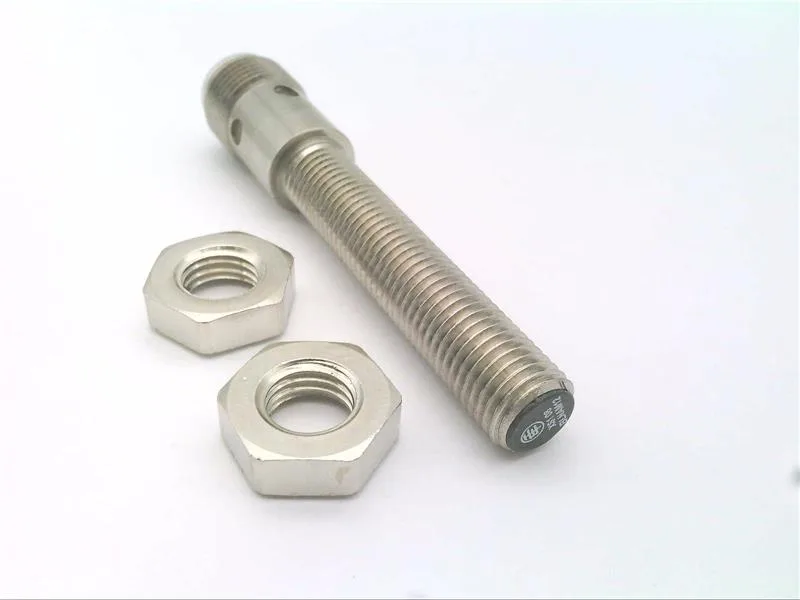

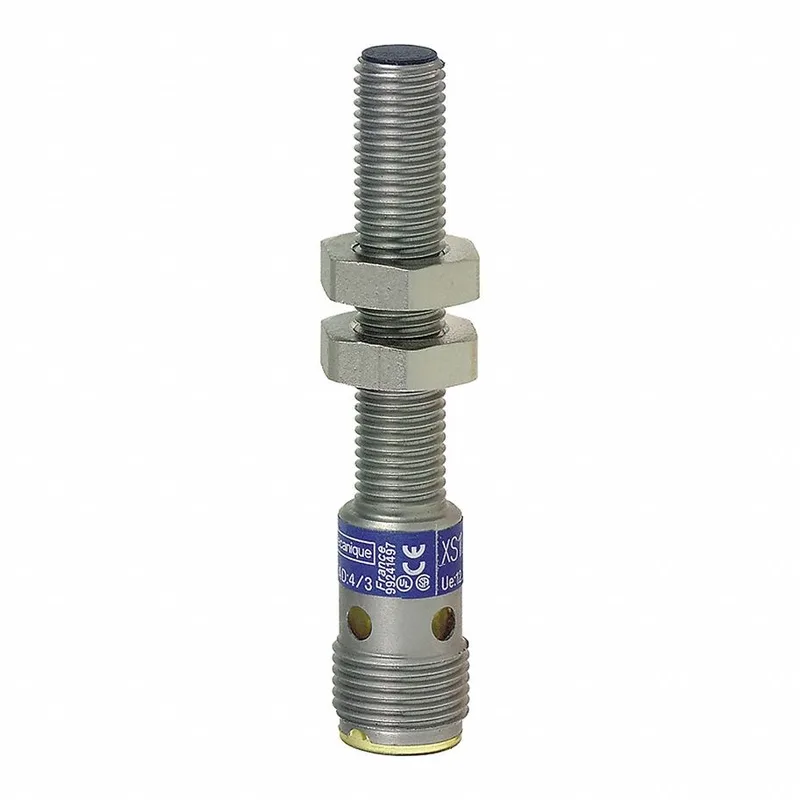

Schneider Electric XS108BLNAM12 — Proximity Sensors

Telemecanique XS108BLNAM12 Inductive Proximity Sensor, M8, N

MPNXS108BLNAM12

Telemecanique Series XS1, XS108BLNAM12, Inductive Cylindrical Proximity Sensor, M8 Threaded, Shielded, NPN NO, 2 mm sensing distance, 12-24 VDC, 200 mA, IP67, M12 Connector.

$9.14Ref. price · indicative, final on quote
Schneider Electric XS108BLNAM12 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

XS108BLNAM12 — Identification
ParameterValue
SeriesXS1
XS108BLNAM12 — Sensing
ParameterValue
Sensing distance, max. (alt.)2 mm
Sensing methodInductive
Sensing-face shieldingShielded
XS108BLNAM12 — Electrical
ParameterValue
Supply voltageNot Rated ; 12-24V DC
AC supply voltage ratingNot Rated
DC supply voltage rating12-24V DC
Number of wires3
Electrical connectionM12
Electrical installation typeDirect Connector
XS108BLNAM12 — Output
ParameterValue
Output circuit contact formNO
Output circuit typeNPN
Includes indicator lightsIndicator Lights Included
Output circuitNPN
XS108BLNAM12 — Mechanical
ParameterValue
Body styleCylindrical
Overall height61 mm
Body materialBrass
XS108BLNAM12 — Environmental
ParameterValue
Operating temperature, max. (alt.)158 °F
Operating temperature, min. (alt.)-13 °F
IP ratingIP67
XS108BLNAM12 — Approvals
ParameterValue
Standards / certificationsCE; CSA; RoHS; UL Listed

Product details

The Telemecanique XS108BLNAM12 is a Series XS1 inductive proximity sensor in a nickel-plated brass cylindrical body, M8 threaded, shielded. It detects ferrous and non-ferrous metal targets within 2 mm per the datasheet sensing distance. The NPN normally-open output sinks up to 200 mA at 12-24 VDC, with an M12 male connector for the 3-wire direct connection. Rated IP67 and NEMA 4X, so it withstands washdown environments. The LED indicator confirms target presence. This is an active-production part with CE, CSA, UL Listing, and RoHS compliance.

Frequently asked questions

Will XS108BLNAM12 drop into a panel that was specified around XS9E11RPBL01M12 without rewiring?

No. The XS108BLNAM12 is NPN normally-open; the XS9E11RPBL01M12 is PNP normally-closed. The mounting form factor (M8 cylindrical vs rectangular) and sensing distance (shielded 2 mm vs unshielded 10 mm) also differ. A direct swap would require output circuit rewiring and mechanical rework.

What compliance documentation does this sensor carry?

The XS108BLNAM12 is CE marked, CSA certified, UL Listed, and RoHS compliant. These certifications are per the spec table.

What are the key electrical ratings?

Supply voltage is 12-24 VDC; maximum load current is 200 mA; output is NPN normally-open (sinking). Sensing distance is 2 mm shielded. Operating temperature range is -13 °F to 158 °F.
