Schneider Electric XS112B3PCL2

Telemecanique XS112B3PCL2 Proximity Sensor, M12 Shielded, PN

MPN XS112B3PCL2

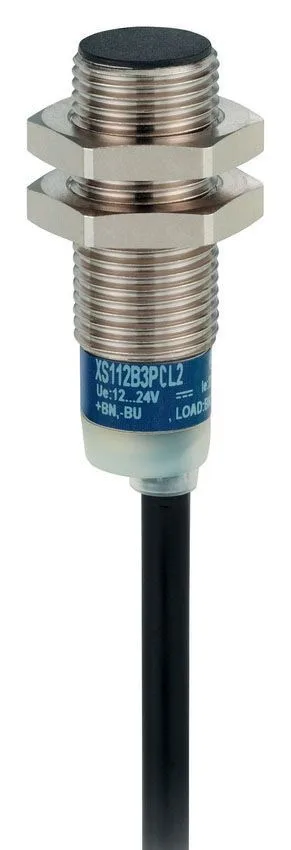

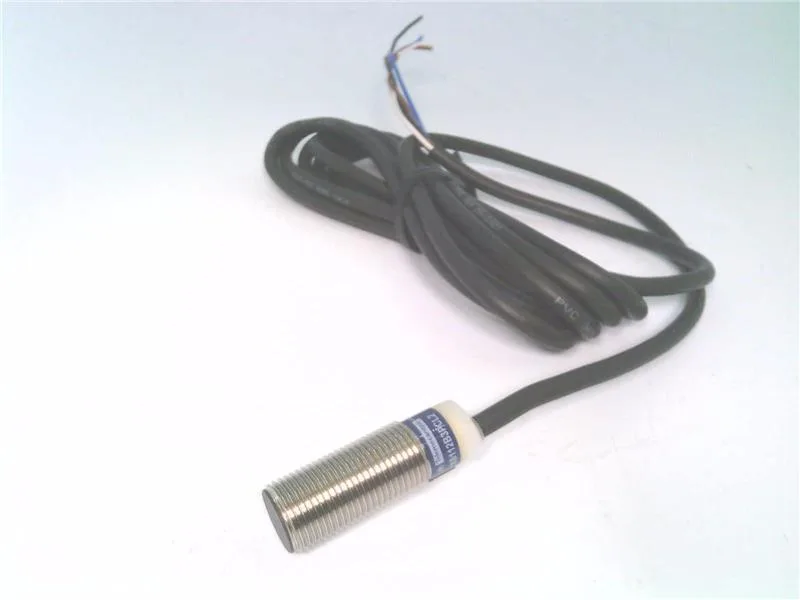

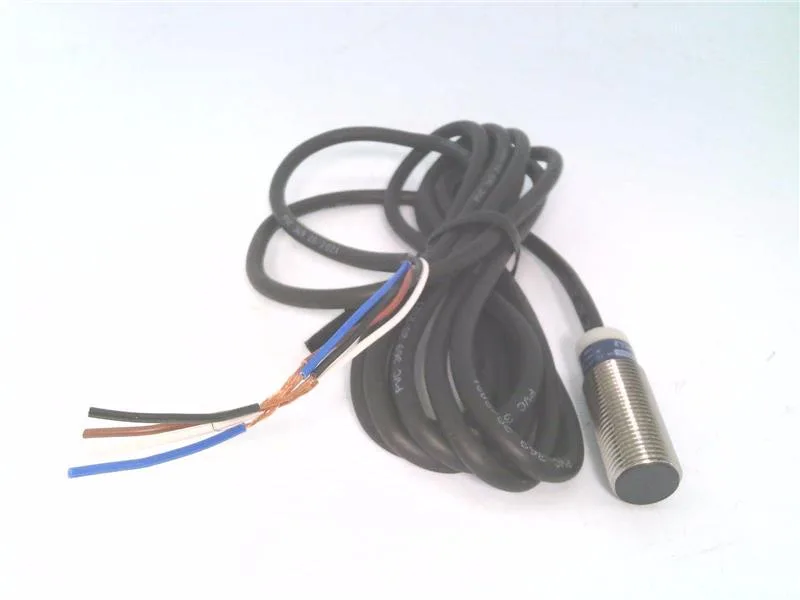

Telemecanique XS1 series, inductive proximity sensor, XS112B3PCL2, M12 threaded shielded, PNP 4-wire, 2 m prewired cable, 4 mm sensing distance, 12-24V DC, 200 mA max load, IP65/67, nickel-plated brass body.

$26.75 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

XS112B3PCL2 specifications
ParameterValue
SeriesXS1
Output circuit typePNP
Supply voltageNot Rated ; 12-24 V DC
IP ratingIP65 / IP67
Body finishNickel Plated
Sensor diameter12 mm
Sensor body styleCylindrical

Product details

The XS112B3PCL2: PNP output (/) at 200 mA sinks into a PLC input or relay coil directly— no pull-up resistor needed. The 4-wire cable gives you separate NO and NC signals, or you can wire it as complementary outputs; the indicator light shows power and switching state, which helps during commissioning without a handheld tool.

Where it fits (and does not) versus other Telemecanique sensors

The XS1 series is built around a cylindrical 12 mm threaded barrel. The rectangular peers in evidence—XSDA600519H7 and XSDH603629—use plastic bodies and different mounting holes; they will not drop into an M12 hole without a bracket adapter. Their sensing ranges (60 mm and 6-60 mm respectively) are far longer than this 4 mm sensor, so they are not functional equivalents for short-range flush-mount applications. Another cylindrical variant is the XS9E11RPBL01M12, but it uses a remote M12 connector and has 10 mm unshielded sensing. It could replace the XS112B3PCL2 in function only if you have the mating connector and need the longer range; the mounting footprint differs (rectangular block vs. threaded barrel), so a bracket may be required.

MPN
XS112B3PCL2
