Schneider Electric XS112BLPAL5

Telemecanique XS112BLPAL5 Inductive Sensor, M12 Shielded, PN

MPN XS112BLPAL5

Telemecanique XS1 series, XS112BLPAL5 inductive cylindrical proximity sensor, M12 threaded, shielded, PNP NO, 12-24 VDC, 2 mm sensing distance, 5 m prewired cable, IP67, NEMA 4X.

$9.14 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

XS112BLPAL5 specifications
ParameterValue
SeriesXS1
Output circuit typePNP
Supply voltageNot Rated ; 12-24 V DC
IP ratingIP67
Body finishNickel Plated
Sensor diameter12 mm
Sensor body styleCylindrical

Product details

Fit and function

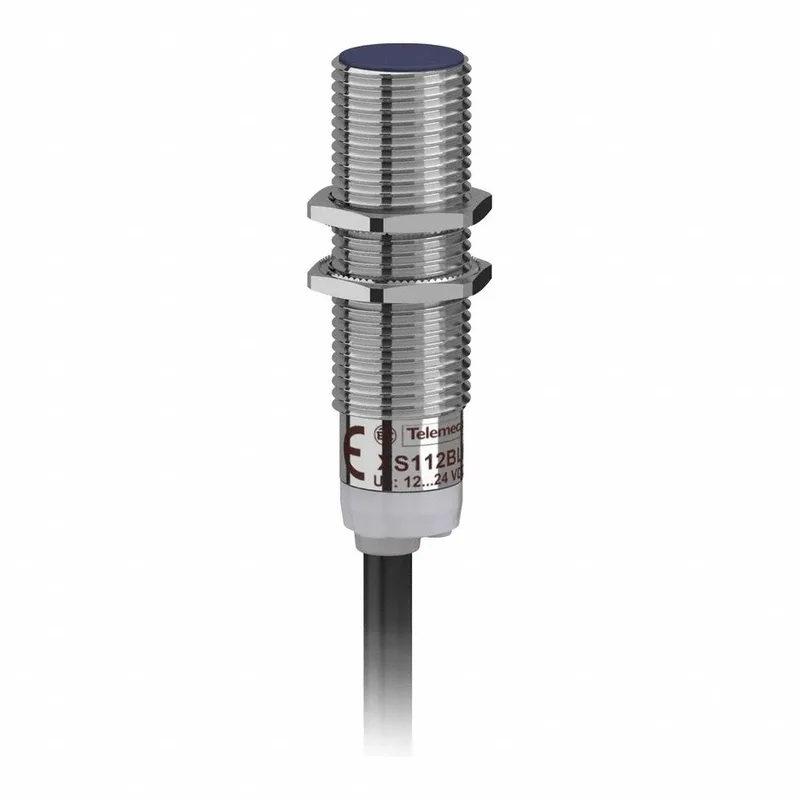

The XS112BLPAL5 is a shielded M12 cylindrical inductive proximity sensor from the XS1 series. It detects ferrous targets at 2 mm flush-mount — no derating needed if you mill a countersunk mounting hole. Output is PNP normally-open, 200 mA max, wired with a 5-meter prewired cable terminated to bare wire. Power it from any 12-24 VDC supply; the indicator LED is built in, so you get a visual on target presence without a test magnet.

The brass housing has a nickel-plated finish for corrosion resistance, and the IP67 / NEMA 4X rating means it handles washdown and outdoor exposure — no additional boot needed for most food or automotive lines. Operating temperature runs -13°F to 158°F. Compliance documentation: CE, CSA, RoHS, and UL Listed are all on the nameplate, so your panel builder has the marks for UL 508A shop approvals.

MPN
XS112BLPAL5
