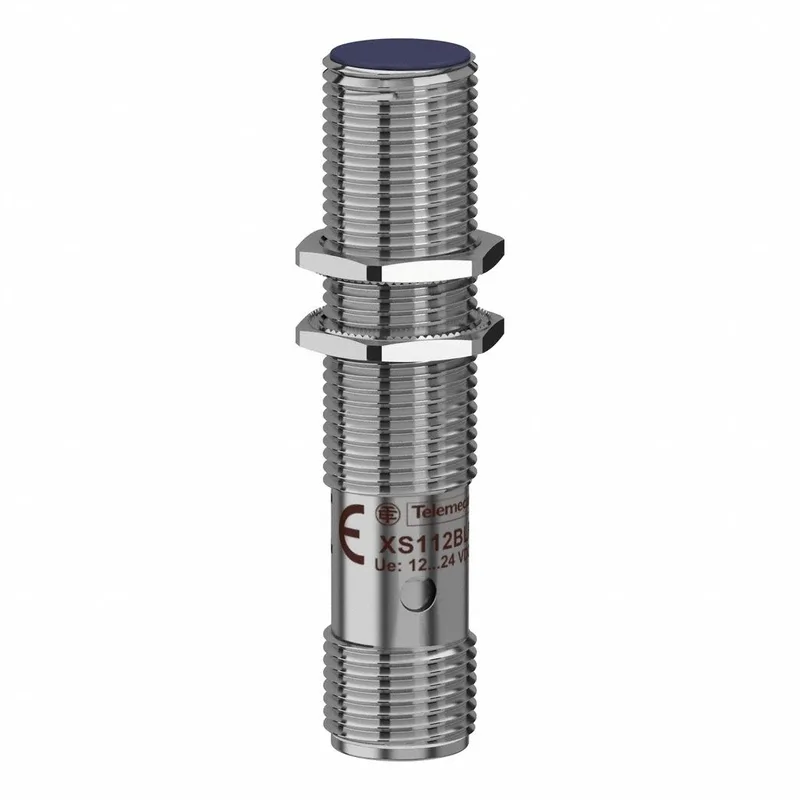

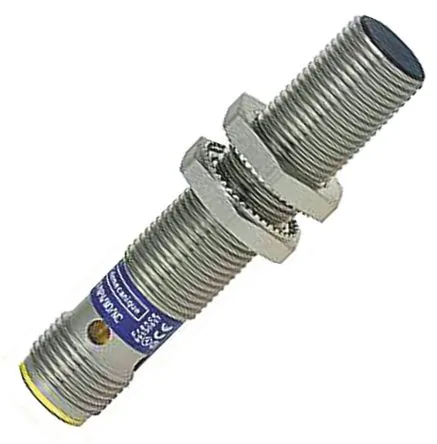

The Telemecanique XS112BLPAM12 is a shielded M12 threaded cylindrical inductive proximity sensor from the XS1 series, with a 2 mm maximum sensing distance and a PNP normally-open output. It operates on 12-24 VDC and is built for direct connector installation via a 4-pin M12 connector. The brass body with nickel-plated finish and IP67 / NEMA 4X rating means it handles washdown and oily environments in machine-tool or packaging lines — the metal barrel resists mechanical impact better than a plastic housing.
The 2 mm shielded sensing range is short — it detects ferrous targets only at very close proximity, which is typical for a shielded M12 sensor that can be flush-mounted in metal without derating. The 12-24 VDC supply range is standard for 24 V control systems; the sensor includes an LED indicator for quick commissioning and fault isolation on the line.
