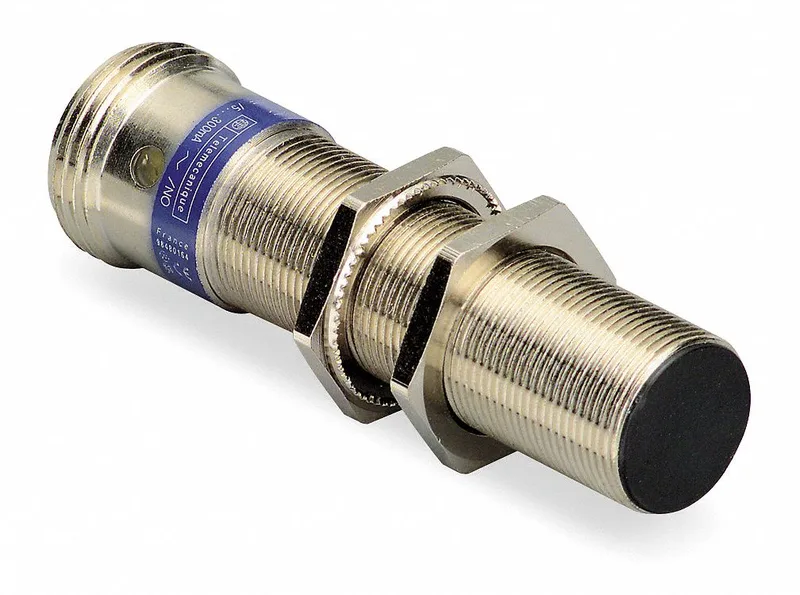

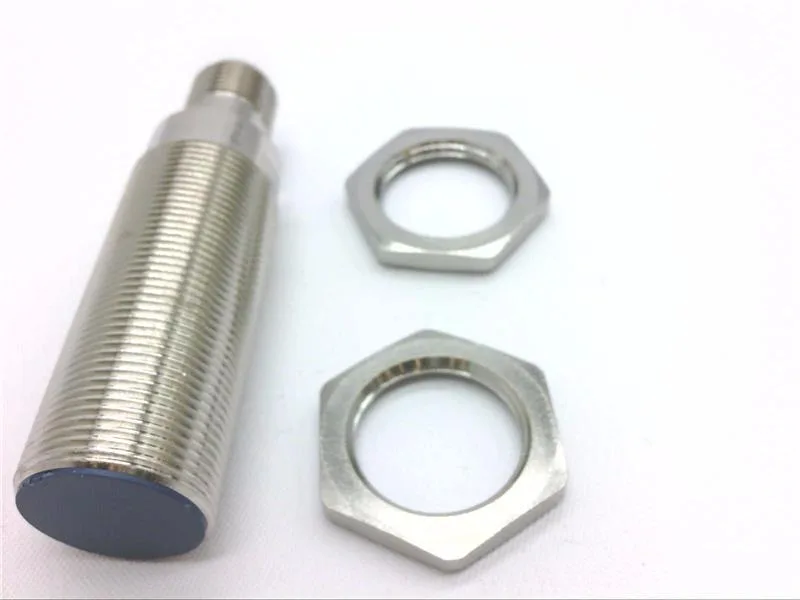

It detects ferrous targets up to 5 mm away through a shielded sensing face, and signals presence via a PNP normally-open output at 12-24V DC. The IP67 rating means the sensor body and electronics survive washdown — suitable for food-and-bev lines or outdoor conveyor sections where hose-down cleaning is routine. The M12 quick-disconnect connector (4-pin, 3-wire) keeps replacement fast without pulling cable through conduit.
The 5 mm shielded sensing distance is the maximum rated gap to a standard steel target — in practice, derate by about 40% for aluminum or brass targets. Shielded flush mounting lets you embed the sensor in a metal bracket without false triggering from the surrounding steel. The PNP NO output sinks up to 200 mA, enough to drive a PLC input directly or switch a small relay coil. Supply range is 12-24V DC with reverse polarity protection built into the XS1 family. Operating temperature spans -13 °F to 158 °F (-25 °C to 70 °C), covering most indoor industrial environments.
