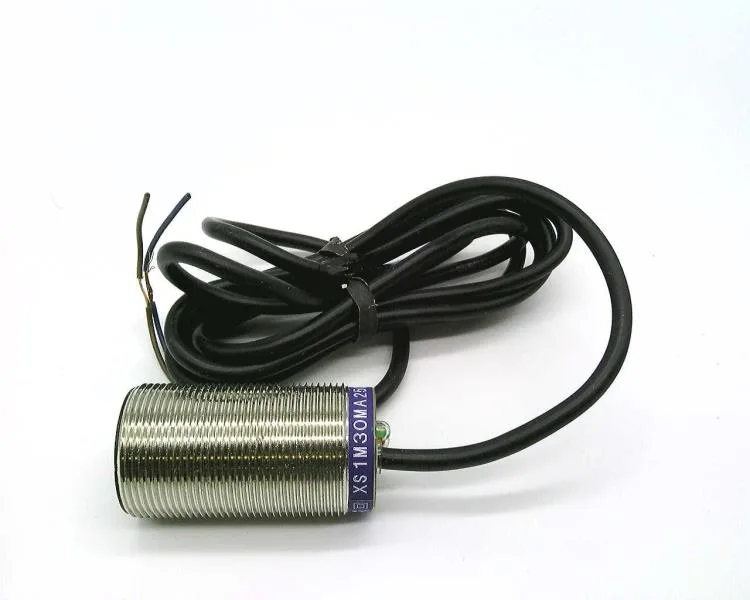

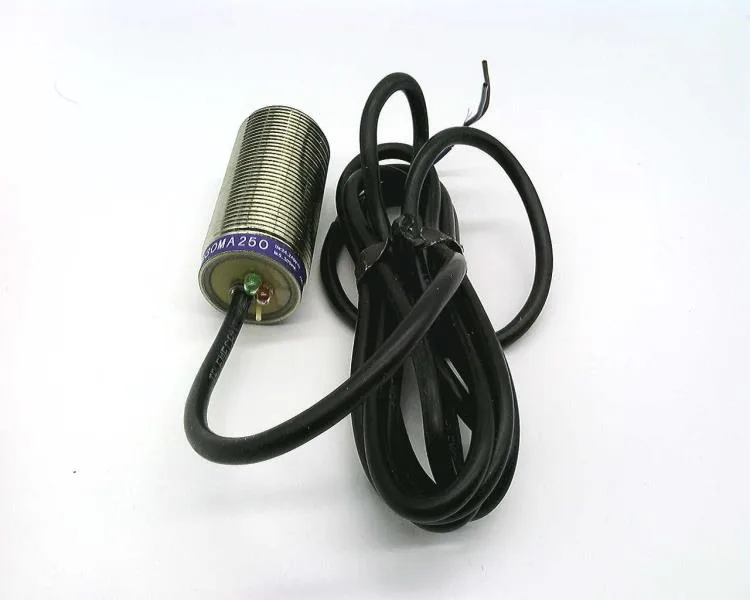

Telemecanique / OsiSense XS1M30MA250 inductive proximity sensor, 30mm threaded barrel, shielded, 10mm sensing distance, 2-wire NO output, 24-240 VAC/24-210 VDC, 2m cable.
| Parameter | Value |
|---|---|
| Sensing distance | 10 MM |
| Parameter | Value |
|---|---|
| Switching frequency | 25 HZ (AC), 2000 HZ (DC) |
| Load current | 5 TO 300 MILLIAMPERE (AC), 5 TO 200 MILLIAMPERE (DC) |
| Parameter | Value |
|---|---|
| Number of wires | 2 |
| Parameter | Value |
|---|---|
| Body material | NICKEL PLATED BRASS |
| Parameter | Value |
|---|---|
| Operating temperature range | -13 TO 176 DEG F |
The XS1M30MA250: Threaded barrel, 30 mm diameter, nickel-plated brass body. Shielded construction allows flush mounting without derating the sensing distance. 2 m PVC cable, 2-wire. Wiring is straightforward: power and load in series with the NO contact, rated for the voltage range above.
It holds UL, CSA, and CE approvals.
