The Square D XS1M30MA250K is a shielded 30mm tubular inductive proximity sensor from the OsiSense family, rated for 10mm sensing distance on ferrous targets. It operates across a wide voltage range — 24 to 240 VAC or 24 to 210 VDC — making it a single SKU for both AC and DC control circuits. Switching frequency splits by supply: 25 Hz on AC, 2000 Hz on DC. The 2-wire NO output simplifies wiring. Approvals UL, CSA, CE cover panel-level acceptance. The lifecycle status is current, so the part can be specified into a new BOM without obsolescence risk.
Square D XS1M30MA250K Inductive Sensor, 30mm, 10mm, 240VAC/2
MPNXS1M30MA250K

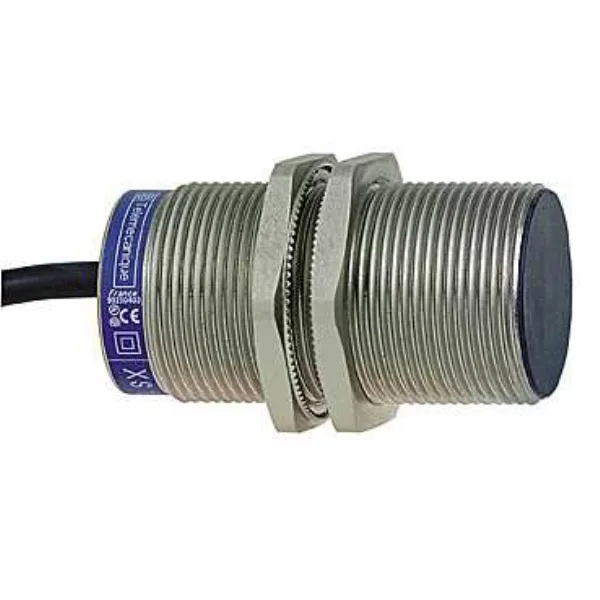

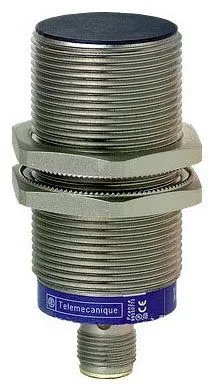

Square D / Telemecanique OsiSense XS1M30MA250K inductive proximity sensor, 30mm shielded threaded barrel, 10mm sensing distance, 2-wire NO, 24-240VAC/24-210VDC, IP67/NEMA 4X/6P.
$34.29Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Sensing
| Parameter | Value |
|---|---|
| Sensing distance | 10 MM |
Output
| Parameter | Value |
|---|---|
| Switching frequency | 25 HZ (AC), 2000 HZ (DC) |
| Load current | 5 TO 300 MILLIAMPERE (AC), 5 TO 200 MILLIAMPERE (DC) |
Electrical
| Parameter | Value |
|---|---|
| Number of wires | 2 |
Mechanical
| Parameter | Value |
|---|---|
| Body material | NICKEL PLATED BRASS |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature range | -13 TO 176 DEG F |
Product details
Frequently asked questions
What is the UPC for this sensor?
The UPC is 78590191605.
MPN
XS1M30MA250K
