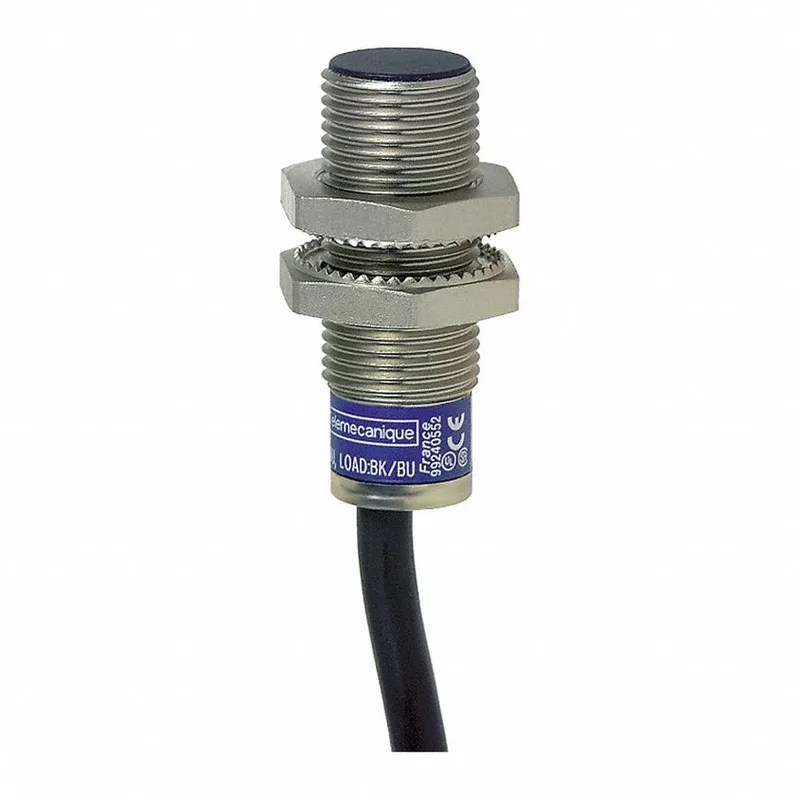

The XS1N12NA349L1 is an M12 shielded inductive proximity sensor from Telemecanique's XS1 series, delivering a 4 mm sensing range and a 200 mA NPN normally open output over a 5 m prewired cable. The nickel-plated brass body and IP68/IP69K sealing make it a reliable choice in wet or washdown zones.
Environmental and Protection Ratings
With an IP69K rating and NEMA 4X enclosure, the sensor survives high-pressure, high-temperature washdown cycles common in food processing or packaging. Built-in overload, reverse polarity, and short circuit protection reduce the chance of failure from miswiring or transient faults. Operating range is -13 °F to 122 °F.
