Schneider Electric XS1N18NA349D — Proximity Sensors

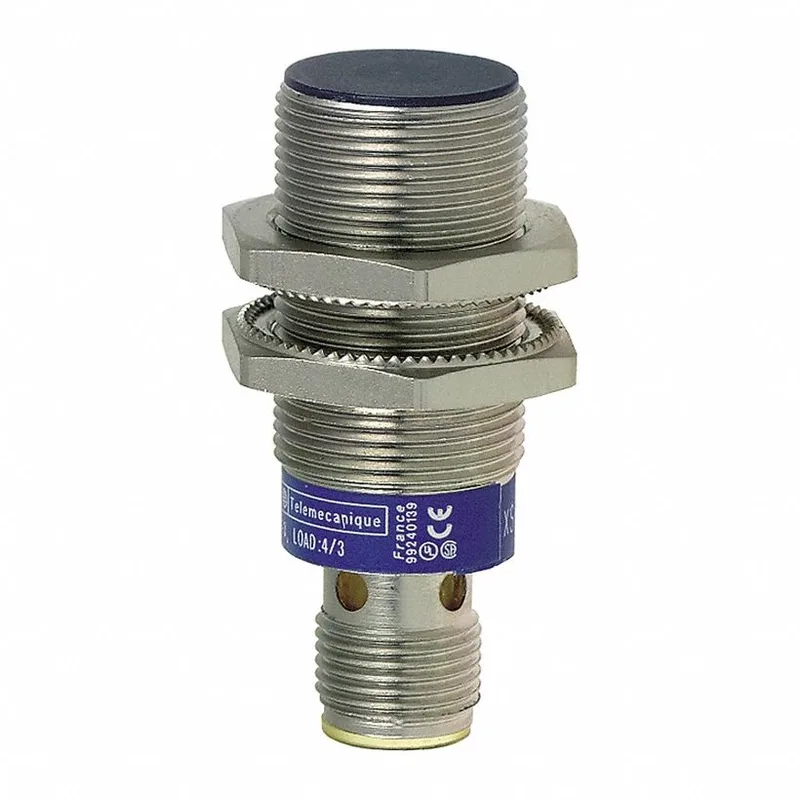

Telemecanique XS1N18NA349D Inductive Prox, M18, NPN, 10mm

MPNXS1N18NA349D

Telemecanique Sensors XS1 Series, XS1N18NA349D, Inductive Cylindrical Proximity Sensor, M18 Threaded, Shielded, NPN NO, 10 mm Sensing Distance, 12-24V DC, IP67/IP69K.

Schneider Electric XS1N18NA349D datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

XS1N18NA349D — Identification
ParameterValue
SeriesXS1
XS1N18NA349D — Sensing
ParameterValue
Sensing distance, max. (alt.)10 mm
Sensing methodInductive
Sensing-face shieldingShielded
XS1N18NA349D — Electrical
ParameterValue
Supply voltageNot Rated ; 12-24V DC
AC supply voltage ratingNot Rated
DC supply voltage rating12-24V DC
Number of wires3
Electrical connectionM12
Electrical installation typeDirect Connector
XS1N18NA349D — Output
ParameterValue
Output circuit contact formNO
Output circuit typeNPN
Includes indicator lightsIndicator Lights Included
Output circuitNPN
XS1N18NA349D — Mechanical
ParameterValue
Body styleCylindrical
Overall height50 mm
Body materialBrass
XS1N18NA349D — Environmental
ParameterValue
Operating temperature, max. (alt.)122 °F
Operating temperature, min. (alt.)-13 °F
IP ratingIP67; IP69K
XS1N18NA349D — Approvals
ParameterValue
Standards / certificationsCE; CSA; RoHS; UL Listed

Product details

Qualification & Fit for GMP Positions

The XS1N18NA349D is a current-production M18 shielded inductive proximity sensor from the Telemecanique XS1 series, documented with CE, CSA, RoHS, and UL listing — the compliance baseline a qualification package requires. The 360-degree LED indicator gives a local go/no-go that supports the audit trail during commissioning and fault isolation. Rated IP67 and IP69K with a NEMA 4X enclosure, the nickel-plated brass body holds up to repeated CIP/SIP washdown cycles without pitting. The M12 connector (4-pin, 3-wire) eliminates hardwiring — a direct swap under change control without re-running cable.

Material & Environmental Compliance

Body material is nickel-plated brass. The sensor carries UL listing, CE mark, and RoHS compliance. IP69K rating confirms housing seals against high-pressure washdown.

Frequently asked questions

What compliance documentation does this sensor carry?

It is CE marked, CSA certified, RoHS compliant, and UL Listed. The IP67 and IP69K ingress protection ratings are third-party verified, along with NEMA 4X enclosure rating.

What are the key protection features?

It includes 360-degree LED indicator, extended range, overload protection, reverse polarity protection, and short circuit protection — all built into the sensor without external modules.
