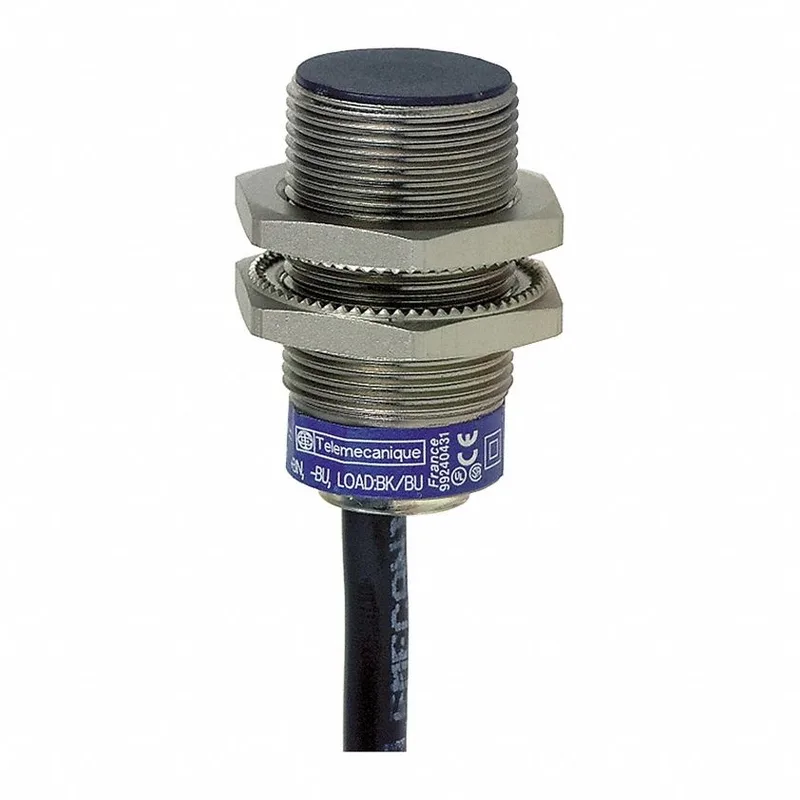

The Telemecanique Sensors XS1N18PA349 is an inductive proximity sensor from the XS1 series, delivering a 10 mm shielded sensing range with a PNP output rated for 200 mA loads at 12-24V DC. The IP68/IP69K seal and nickel-plated brass body make it a fit for washdown zones, food processing, and heavy-wash environments where corrosion resistance and high-pressure cleaning cycles are the norm.
Mounting & Wiring

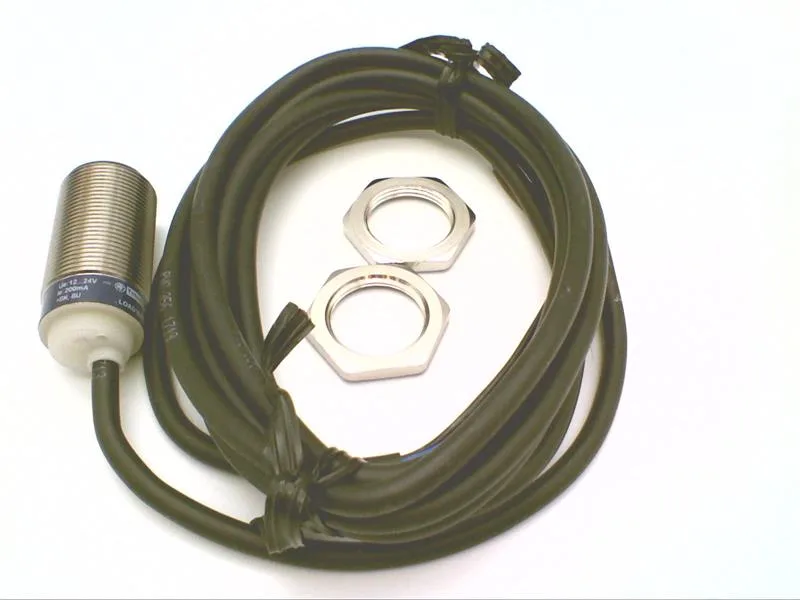

M18 threaded barrel with a shielded sensing face allows flush mounting in metal panels without derating the sensing distance. The 2 m prewired cable terminates in bare wire ends — no connector body to add. The integrated indicator light confirms target presence during commissioning. PNP sourcing output (NO contact) suits PLC inputs that pull the signal high. Watch the 200 mA max load; direct small relays or valve solenoids within that current draw without an interposing interface.
