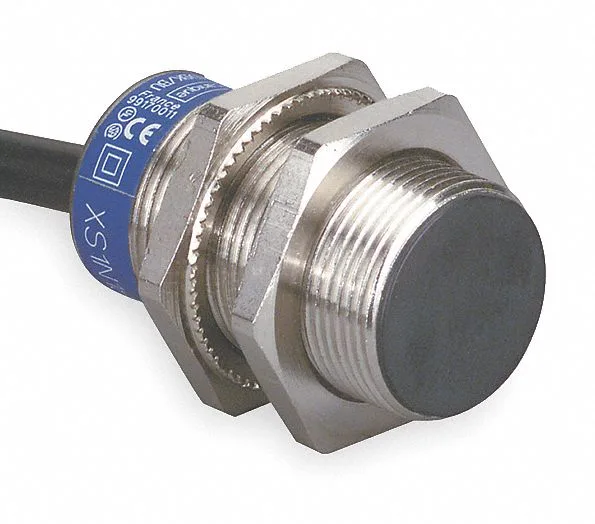

Schneider Electric XS1N18PA349D — Proximity Sensors

Schneider XS1N18PA349D Inductive Sensor, M18, PNP NO, 10mm,

MPNXS1N18PA349D

Schneider / Telemecanique XS1 series, inductive proximity sensor, M18 shielded, 10 mm sensing distance, PNP normally open, 12-24 VDC, 3-wire, M12 connector, IP67 / IP69K, nickel-plated brass body.

$26.67Ref. price · indicative, final on quote
Schneider Electric XS1N18PA349D datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

XS1N18PA349D — Identification
ParameterValue
SeriesXS1
XS1N18PA349D — Sensing
ParameterValue
Sensing distance, max. (alt.)10 mm
Sensing methodInductive
Sensing-face shieldingShielded
XS1N18PA349D — Electrical
ParameterValue
Supply voltageNot Rated ; 12-24V DC
AC supply voltage ratingNot Rated
DC supply voltage rating12-24V DC
Number of wires3
Electrical connectionM12
Electrical installation typeDirect Connector
XS1N18PA349D — Output
ParameterValue
Output circuit contact formNO
Output circuit typePNP
Includes indicator lightsIndicator Lights Included
Output circuitPNP
XS1N18PA349D — Mechanical
ParameterValue
Body styleCylindrical
Overall height50 mm
Body materialBrass
XS1N18PA349D — Environmental
ParameterValue
Operating temperature, max. (alt.)122 °F
Operating temperature, min. (alt.)-13 °F
IP ratingIP67; IP69K
XS1N18PA349D — Approvals
ParameterValue
Standards / certificationsCE; CSA; RoHS; UL Listed

Product details

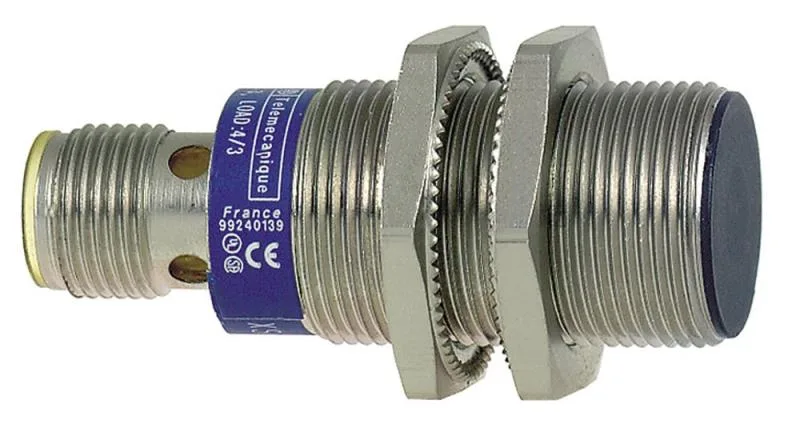

The XS1N18PA349D is a shielded inductive proximity sensor from the XS1 series, built with a nickel-plated brass barrel and an M12 quick-disconnect connector. It detects ferrous metal targets at a maximum 10 mm distance, switching a PNP normally open load up to 200 mA on 12–24 VDC. The IP67 and IP69K enclosure ratings make it suitable for washdown zones in food, beverage, and packaging lines where high-pressure, high-temperature cleaning is routine. The LED indicator confirms target presence at a glance.

Wiring and Mounting Notes

Three wires: brown to +24 VDC, blue to common, black to the PNP normally open output. The M12 connector mates with standard female cordsets (A-coded).

Frequently asked questions

Can I use XS1N05PA311S as a direct replacement for XS1N18PA349D?

No. The XS1N05PA311S is an M8 body with 1 mm sensing range and a 5–24 VDC supply. The XS1N18PA349D is M18 with 10 mm range and 12–24 VDC. They are not mechanically or electrically interchangeable without changing the bracket and wiring.

What is the IP rating of XS1N18PA349D?

It carries IP67 and IP69K ratings, meaning it is sealed against temporary immersion (IP67) and withstands high-pressure, high-temperature washdown (IP69K).

What compliance certifications does this sensor have?

CE, CSA, RoHS, and UL Listed — all marked on the product and verifiable through the traceable lot documentation supplied with the order.
