Schneider Electric XS1N30NA349 — Proximity Sensors

Telemecanique XS1N30NA349, NPN NO, 20mm, IP68

MPNXS1N30NA349

Telemecanique Sensors, Series XS, Inductive Cylindrical Proximity Sensor, XS1N30NA349, NPN NO, 20 mm, 12-24V DC, 200 mA, IP68/IP69K.

$34.29Ref. price · indicative, final on quote
Schneider Electric XS1N30NA349 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

XS1N30NA349 — Identification
ParameterValue
SeriesXS
XS1N30NA349 — Sensing
ParameterValue
Sensing distance, max. (alt.)20 mm
Sensing methodInductive
Sensing-face shieldingShielded
XS1N30NA349 — Electrical
ParameterValue
Supply voltageNot Rated ; 12-24V DC
AC supply voltage ratingNot Rated
DC supply voltage rating12-24V DC
Number of wires3
Electrical connectionBare Wire
Electrical installation typePrewired Cable
XS1N30NA349 — Output
ParameterValue
Output circuit contact formNO
Output circuit typeNPN
Includes indicator lightsIndicator Lights Included
Output circuitNPN
XS1N30NA349 — Mechanical
ParameterValue
Body styleCylindrical
Overall height40 mm
Body materialBrass
XS1N30NA349 — Environmental
ParameterValue
Operating temperature, max. (alt.)122 °F
Operating temperature, min. (alt.)-13 °F
IP ratingIP68; IP69K
XS1N30NA349 — Approvals
ParameterValue
Standards / certificationsCE; CSA; UL Listed

Product details

What this sensor brings to a panel

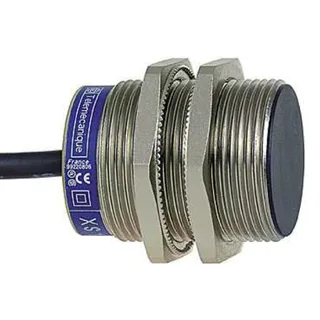

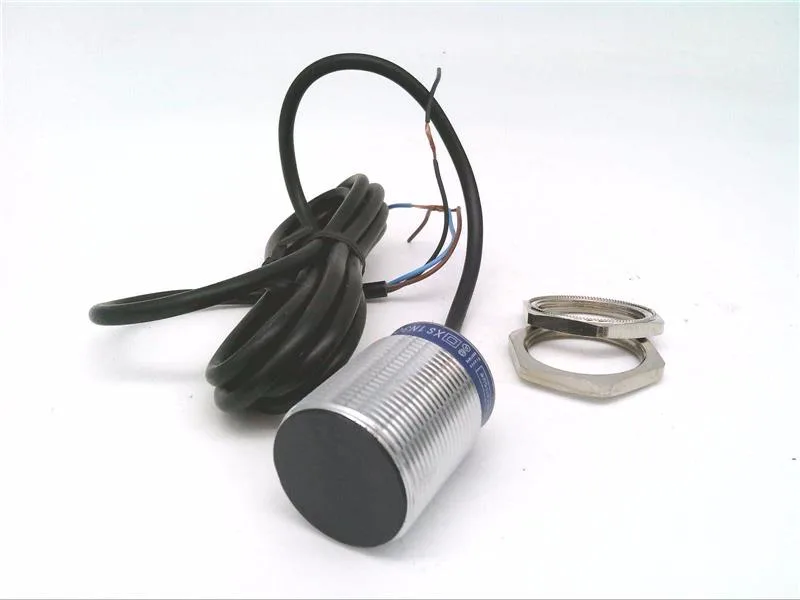

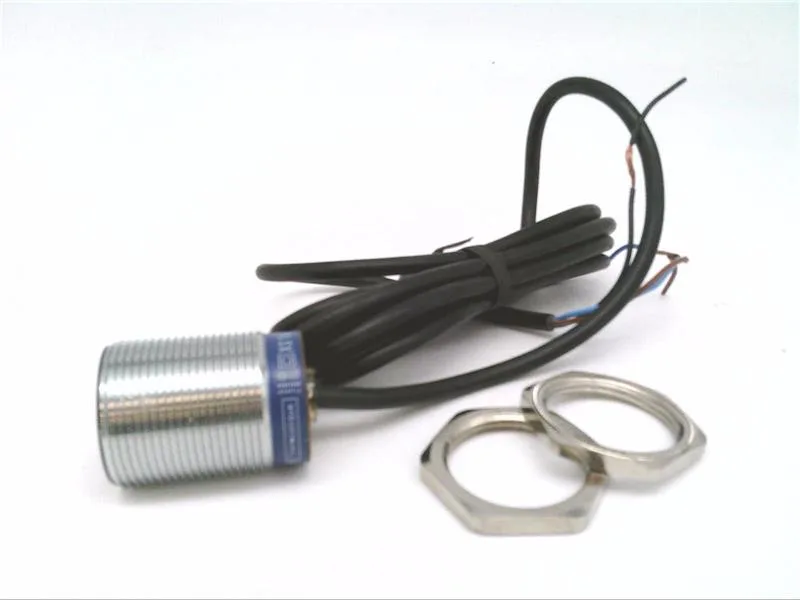

The XS1N30NA349: A shielded M30 threaded inductive proximity sensor from the XS series, delivering a 20 mm sensing distance with a 3-wire NPN NO output. Rated 12-24V DC and 200 mA maximum load, it includes overload, reverse polarity, and short circuit protection built in — no external diode needed on the output. The nickel-plated brass barrel and IP68/IP69K sealing make this a candidate for washdown zones and outdoor cabinets; NEMA 4X rating confirms the same. Prewired with a 2 m cable, bare ends, so termination is at the panel side. The indicator light is integrated for quick visual confirmation during commissioning.

Frequently asked questions

What series does this sensor belong to?

It is part of the XS series from Telemecanique Sensors.

What built-in protections does the XS1N30NA349 include?

It has overload protection, reverse polarity protection, and short circuit protection.

What compliance certifications does this sensor carry?

It is CE, CSA, and UL Listed. RoHS and REACH are not explicitly stated in the specification.
