M12 unshielded inductive — 8 mm range, NPN NO, IP68/IP69K

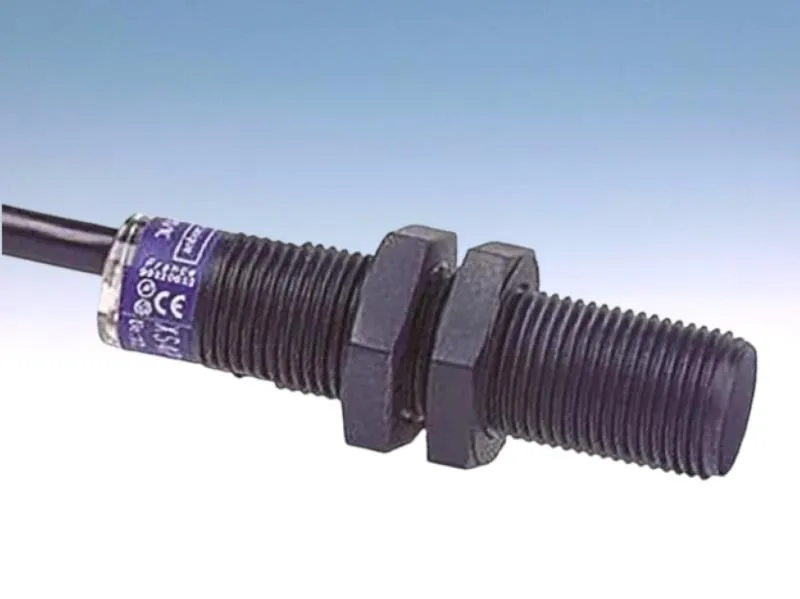

The XS212AANAL2 is an M12 threaded cylindrical inductive proximity sensor from the XS2 series, with an unshielded sensing face that delivers an 8 mm maximum sensing distance on mild steel — about double what a shielded version of the same diameter would give, per the standard derating for flush-mount vs non-flush. Output is NPN normally-open, 3-wire DC, rated for 12-48 VDC supply and 200 mA maximum load current — a direct sink input for a PLC or a small relay coil, no level-shifter needed.
Sealing and washdown — IP68/IP69K plus NEMA 4X
Rated IP68 (continuous immersion beyond 1 m) and IP69K (high-pressure, high-temperature washdown), plus NEMA 4X for corrosion resistance — this sensor is specified for food-and-beverage lines, car-wash tunnels, or any zone where hose-down cleaning is routine. The PPS body with nickel-plated finish stands up to caustic washdown chemicals and resists corrosion in damp environments. The prewired 2 m cable with bare wire ends means the seal integrity is maintained through the cable gland at the panel entry — no connector to leak.
Compliance and lifecycle — active production, global certs
Operating temperature spans -13 °F to 185 °F (-25 °C to 85 °C), covering most indoor industrial environments and unheated outdoor enclosures within that band.
