Telemecanique Sensor, Series XS2, Inductive Cylindrical Proximity, Unshielded, PNP, NO, 4mm Sensing Distance, IP67, 12-24V DC, 5m Cable.
| Parameter | Value |
|---|---|
| Series | XS2 |
| Parameter | Value |
|---|---|
| Sensing distance, max. (alt.) | 4 mm |
| Sensing method | Inductive |
| Sensing-face shielding | Unshielded |
| Parameter | Value |
|---|---|
| Supply voltage | Not Rated ; 12-24V DC |
| AC supply voltage rating | Not Rated |
| DC supply voltage rating | 12-24V DC |
| Number of wires | 3 |
| Electrical connection | Bare Wire |
| Electrical installation type | Prewired Cable |
| Parameter | Value |
|---|---|
| Output circuit contact form | NO |
| Output circuit type | PNP |
| Includes indicator lights | Indicator Lights Included |
| Output circuit | PNP |
| Parameter | Value |
|---|---|
| Body style | Cylindrical |
| Overall height | 44 mm |
| Body material | Brass |
| Parameter | Value |
|---|---|
| Operating temperature, max. (alt.) | 158 °F |
| Operating temperature, min. (alt.) | -13 °F |
| IP rating | IP67 |
| Parameter | Value |
|---|---|
| Standards / certifications | CE; CSA; RoHS; UL Listed |

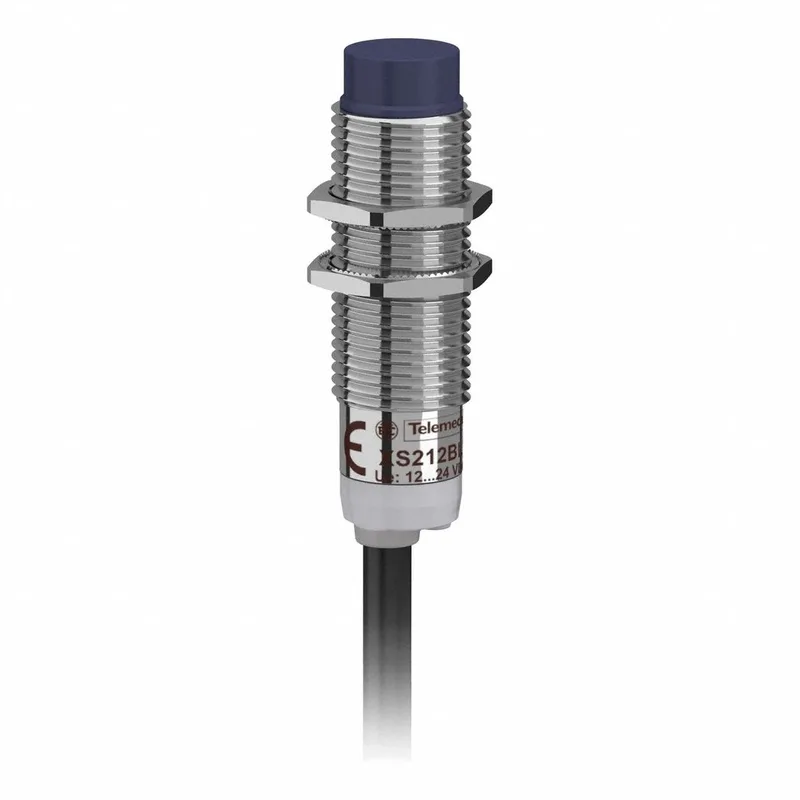

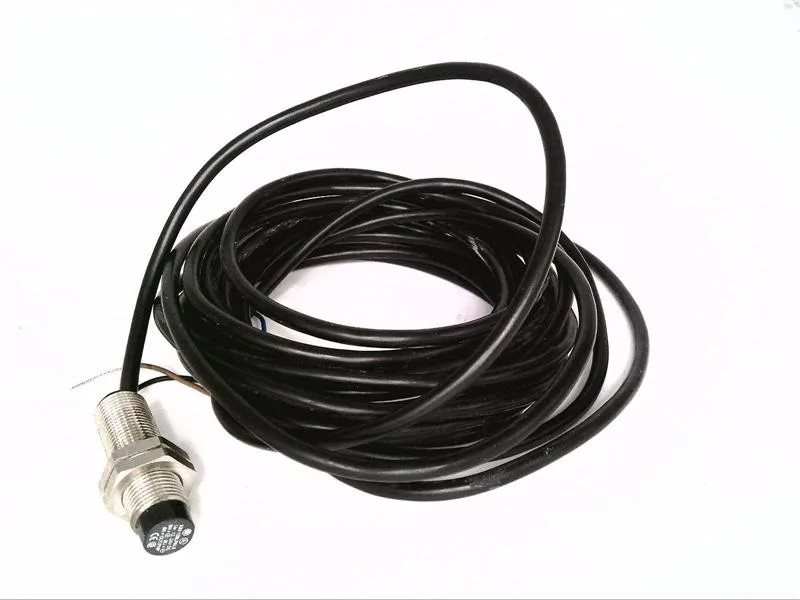

The Telemecanique XS212BLPAL5 is a current-production 12mm M12 threaded inductive proximity sensor with a PNP normally-open output and a 4mm unshielded sensing range. Rated IP67 and NEMA 4X, it survives washdown in food and chemical lines. Built with a nickel-plated brass body and an integrated LED indicator. The 5m prewired cable feeds straight into the control panel without a junction box.
The sensor is listed with CE, CSA, RoHS, and UL certifications. These cover European, North American, and global material-restriction requirements.
No. The XS4P18AB120 is an M18 analog-output sensor with a 2-wire NC circuit and a 2m cable, while the XS212BLPAL5 is a 12mm PNP NO sensor with a 5m cable. The mounting hole size and wiring scheme differ; a direct swap requires mechanical and electrical rework.
