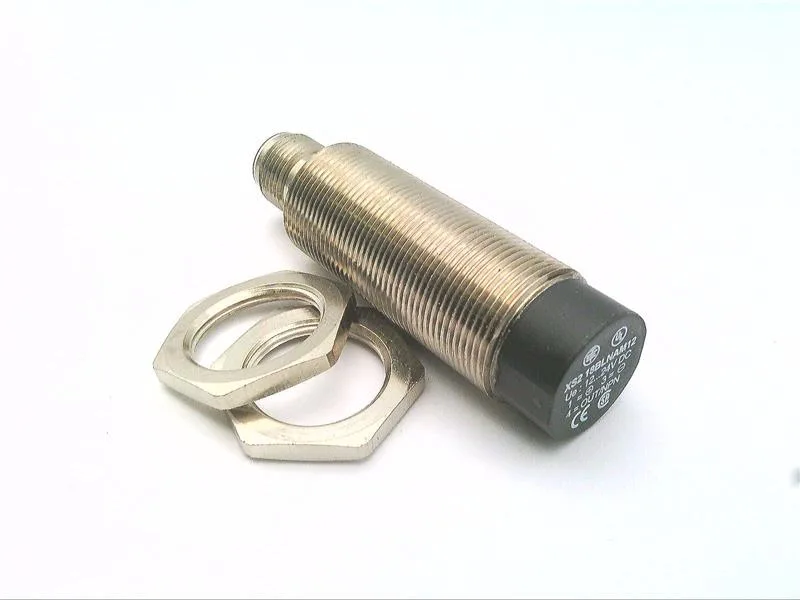

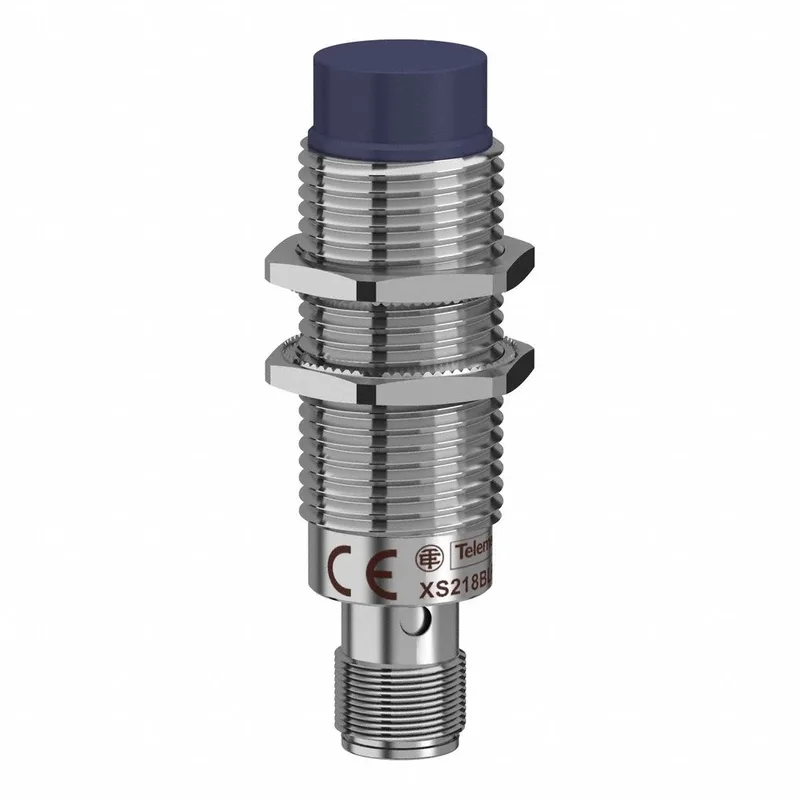

Telemecanique Sensors XS2 series, XS218BLNAM12, M18 threaded cylindrical inductive proximity sensor, unshielded, 8 mm sensing distance, NPN NO output, 12-24V DC, IP67, nickel-plated brass body with M12 connector.
| Parameter | Value |
|---|---|
| Series | XS2 |
| Parameter | Value |
|---|---|
| Sensing distance, max. (alt.) | 8 mm |
| Sensing method | Inductive |
| Sensing-face shielding | Unshielded |
| Parameter | Value |
|---|---|
| Supply voltage | Not Rated ; 12-24V DC |
| AC supply voltage rating | Not Rated |
| DC supply voltage rating | 12-24V DC |
| Number of wires | 3 |
| Electrical connection | M12 |
| Electrical installation type | Direct Connector |
| Parameter | Value |
|---|---|
| Output circuit contact form | NO |
| Output circuit type | NPN |
| Includes indicator lights | Indicator Lights Included |
| Output circuit | NPN |
| Parameter | Value |
|---|---|
| Body style | Cylindrical |
| Overall height | 64 mm |
| Body material | Brass |
| Parameter | Value |
|---|---|
| Operating temperature, max. (alt.) | 158 °F |
| Operating temperature, min. (alt.) | -13 °F |
| IP rating | IP67 |
| Parameter | Value |
|---|---|
| Standards / certifications | CE; CSA; RoHS; UL Listed |
The XS218BLNAM12 is a Series XS2 inductive proximity sensor from Telemecanique Sensors. It's an M18 threaded cylindrical body, unshielded, with an 8 mm sensing distance and NPN normally-open output. Supply is 12-24V DC, and it's rated for 200 mA load current.
Approvals: CE, CSA, RoHS, UL Listed. That covers North American and European panel builds without a separate documentation chase. The UL listing is the one most panel shops will want to see on the nameplate.
