Washdown-rated M18 inductive proximity sensor for hygienic lines

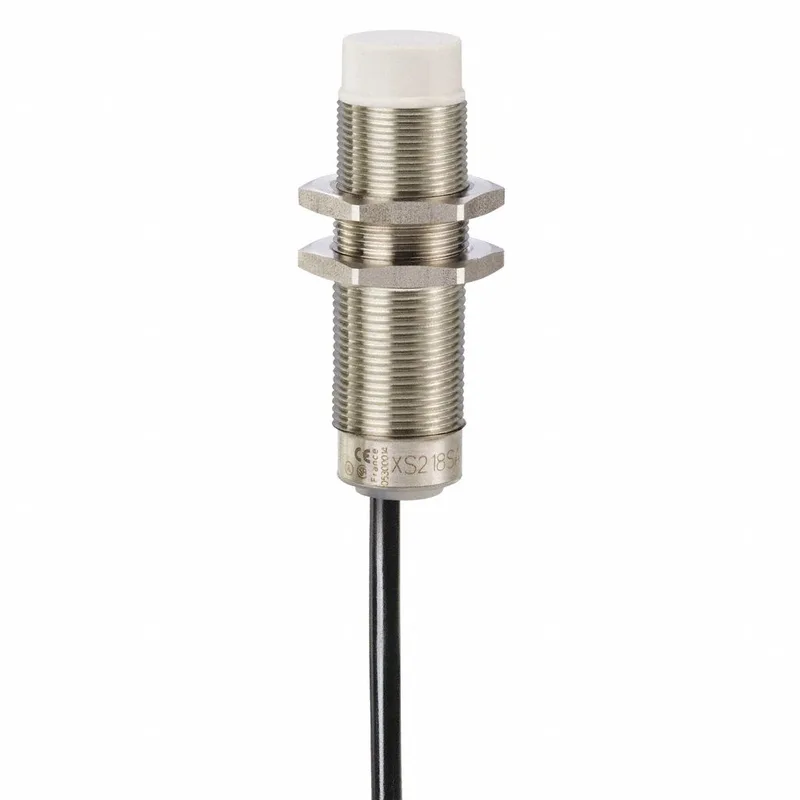

The TELEMECANIQUE XS218SAMAL2 is an M18 threaded cylindrical inductive sensor built for environments that demand hygienic washdown survival. Its 316L stainless steel body and nickel-plated finish resist corrosion from caustic CIP cycles and acidic process media. Rated IP68 and IP69K, it handles high-pressure, high-temperature spray cleaning and temporary submersion — common conditions in dairy, beverage, and pharmaceutical filling lines. The unshielded sensing face provides an adjustable detection range of 8 mm minimum to 15 mm maximum, allowing fine-tuned placement for pipe and valve position detection without physical contact. A 2-wire AC/DC output with NO contact form operates across a wide supply window of 24 to 240 V AC or DC, simplifying integration into legacy and modern control panels alike. Maximum load current is 300 mA, with an integral LED status indicator for quick commissioning and fault isolation. The prewired cable (2 m, bare wire ends) provides a simple termination point, reducing junction box clutter in tight panel or machine zones.
Lifecycle and compliance: active production with global certifications
Certifications include CCC, CE, CSA, RoHS, and UL Listed — covering North American and European installations without additional agency review. Compliance documentation (declaration of conformity, UL certificate, material declarations) is available upon request via RFQ. Operating temperature range of -13°F to 185°F ensures reliable performance in refrigerated environments and near hot CIP return lines.
Mounting and wiring for washdown zones
