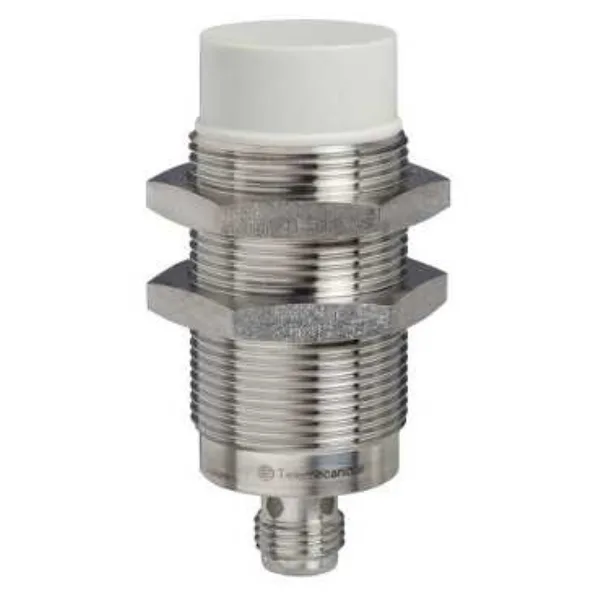

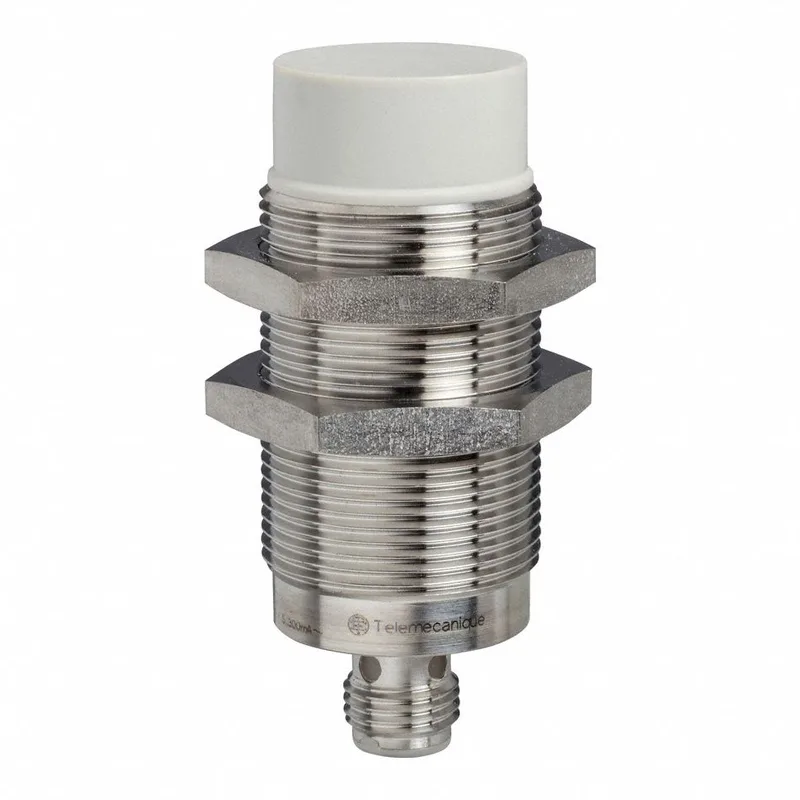

Telemecanique's XS230SANAM12 is an inductive proximity sensor from the XS2 series — stainless steel 316L body, unshielded, NPN output, normally open. It detects metal objects up to 40 mm away through the M30 threaded face. IP67 and IP69K rated, so it handles high-pressure washdown without sealing issues. That's the no-fluff take: a rugged, current-production sensor you can spec into wet or sanitary lines.
Key ratings at a glance
Sensing distance 15–40 mm; M12 4-pin with 3 wires (brown: 12-24V DC, blue: GND, black: NPN), max load 200 mA, indicator. Body 70 mm × 30 mm, temp –13°F to +185°F.
Compliance and packaging
Carries CE, CSA, RoHS, and UL Listing marks — one less headache for machine cert. NEMA 4X rated for corrosion resistance. Sold by the each, direct connector type. Body finish nickel-plated on top of the 316L.
