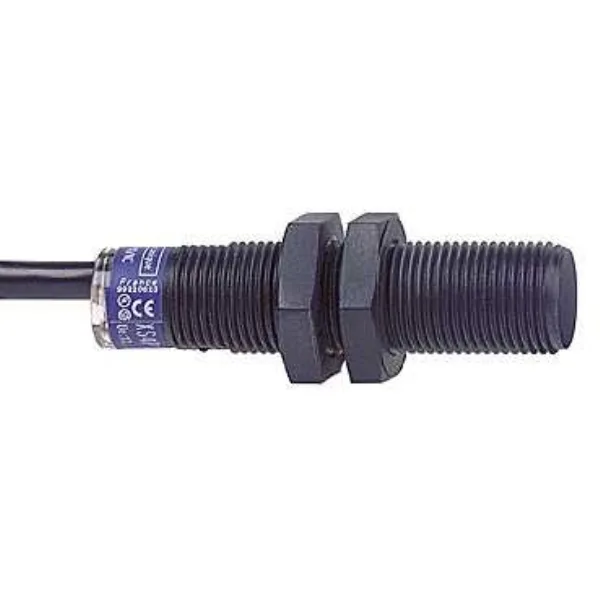

Telemecanique XS4P12PA370 12mm PNP NO Inductive Proximity Sensor, 4mm Sensing, 5000 Hz, 12-48 VDC, IP68, 2m PVC Cable.
| Parameter | Value |
|---|---|
| Sensing distance | 4 MM |
| Parameter | Value |
|---|---|
| Switching frequency | 5000 HZ |
| Load current | 200 MILLIAMPERE |
| Parameter | Value |
|---|---|
| Number of wires | 3 |
| Parameter | Value |
|---|---|
| Body material | PLASTIC |
| Parameter | Value |
|---|---|
| Operating temperature range | -13 TO 176 DEG F |
The Telemecanique XS4P12PA370 is a 12 mm unshielded inductive proximity sensor delivering a 4 mm sensing range and switching at 5000 Hz, rated for 12 to 48 VDC supply. Output is PNP normally open, sinking up to 200 mA. The 2 m PVC cable provides a sealed connection for IP68 and NEMA 3/4X/6P/12/13 environments.
Unshielded sensor, non-flush mounting, 4 mm sensing distance. Threaded 12 mm plastic barrel with PPS sensing face. Rated IP68.
The UPC is 78590192675.
No — the XS1M18MB250K is an 18 mm shielded sensor with NC output and dual AC/DC supply, versus the 12 mm unshielded PNP NO design of the XS4P12PA370. Different wiring, mounting, and output logic require a full re-evaluation.
5000 Hz, suitable for high-speed detection of moving targets.
