Schneider Electric XS508B1PAL2 — Proximity Sensors

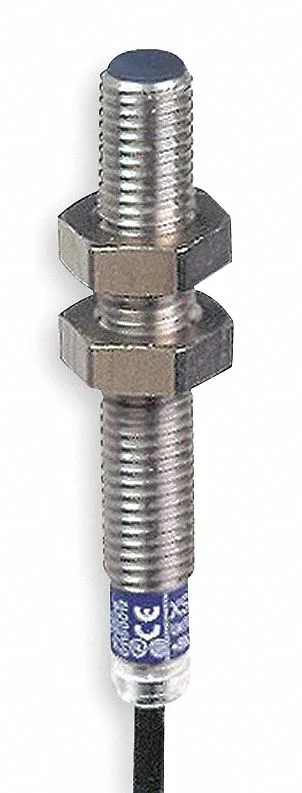

Telemecanique XS508B1PAL2 Inductive Sensor, M8 Shielded, PNP

MPNXS508B1PAL2

Telemecanique XS5 series, XS508B1PAL2 inductive cylindrical proximity sensor, M8 shielded, PNP NO, 2mm sensing distance, 12-24V DC, 200 mA, IP67, 2m cable.

$16.51Ref. price · indicative, final on quote
Schneider Electric XS508B1PAL2 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

XS508B1PAL2 — Identification
ParameterValue
SeriesXS5
XS508B1PAL2 — Sensing
ParameterValue
Sensing distance, max. (alt.)2 mm
Sensing methodInductive
Sensing-face shieldingShielded
XS508B1PAL2 — Electrical
ParameterValue
Supply voltageNot Rated ; 12-24V DC
AC supply voltage ratingNot Rated
DC supply voltage rating12-24V DC
Number of wires3
Electrical connectionBare Wire
Electrical installation typePrewired Cable
XS508B1PAL2 — Output
ParameterValue
Output circuit contact formNO
Output circuit typePNP
Includes indicator lightsIndicator Lights Included
Output circuitPNP
XS508B1PAL2 — Mechanical
ParameterValue
Body styleCylindrical
Overall height33 mm
Body materialStainless Steel
XS508B1PAL2 — Environmental
ParameterValue
Operating temperature, max. (alt.)158 °F
Operating temperature, min. (alt.)-13 °F
IP ratingIP67
XS508B1PAL2 — Approvals
ParameterValue
Standards / certificationsCE; CSA; RoHS; UL Listed

Product details

What the XS508B1PAL2 carries for fit

The XS508B1PAL2 is an XS5 series inductive cylindrical proximity sensor with an M8 threaded stainless steel body (grade 303), rated IP67 and NEMA 4X. Its key fit parameters: a shielded 2 mm sensing range, PNP normally open output at 12-24V DC, capable of switching up to 200 mA. The three-wire 2 m prewired cable (bare wire termination) matches standard industrial wiring for a PNP sensor: brown for supply, blue for ground, black for output. Overload, reverse polarity, and short circuit protection are built in, reducing the need for external suppression or fusing in the control circuit. Operating temperature range is -13 °F to 158 °F, suitable for machine-mount applications inside and outside enclosures.

Frequently asked questions

What series is the XS508B1PAL2 from?

It belongs to the Telemecanique XS5 series of inductive cylindrical proximity sensors.

Does the XS508B1PAL2 include protection features?

Yes, it includes overload, reverse polarity, and short circuit protection built into the output circuit.

What compliance documentation is available for the XS508B1PAL2?

The sensor holds CE, CSA, RoHS, and UL Listed certifications – sufficient for most machine safety and environmental compliance dossiers.
