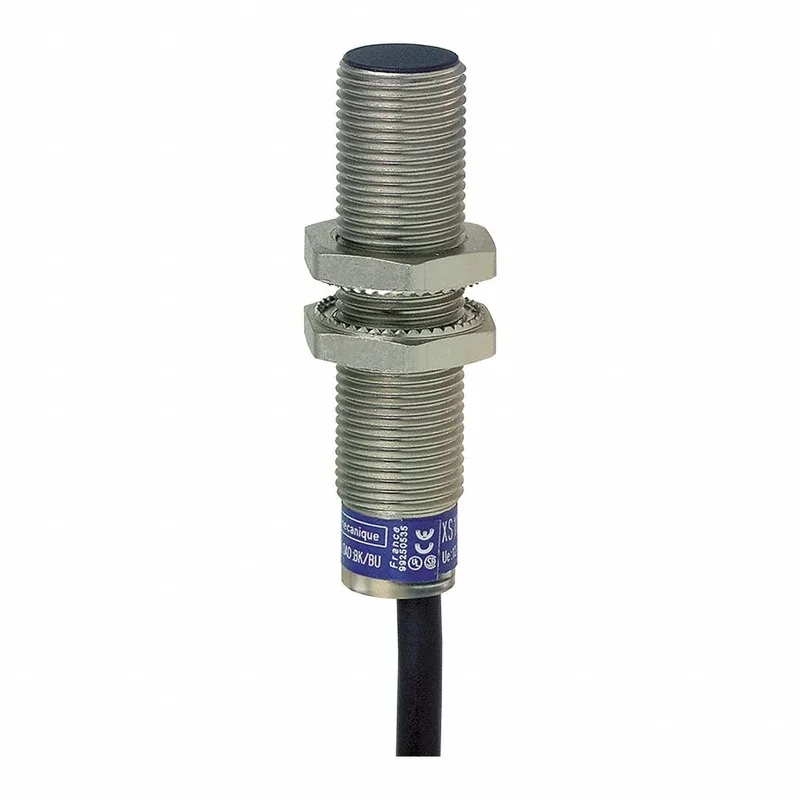

The XS512B1DAL2: M12 shielded inductive prox built for the washdown zone. Rated IP68/IP69K, dropped into wet environments where spray hits the sensor body. Sensing 2 mm through to a metal target; the nickel-plated brass body shrugs off caustic rinse agents at line speed. Overload and short circuit protection keeps the output alive when a jam stalls the line. Operates on 12-48 V DC, 2-wire NO output, prewired with 2 m bare wire cable. Carries UL, CE, CSA, CCC, and RoHS – simple documentation for global line builds. Supply voltage range covers both 24V and 48V control circuits without extra converters.
XS512B1DAL2 Inductive Prox, M12, IP68/IP69K, 2mm
MPNXS512B1DAL2
Schneider Telemecanique XS512B1DAL2, Series XS5, M12 Shielded Inductive Proximity Sensor, IP68/IP69K, 2 mm Sensing, 12-48 V DC, NO, 2-wire, 2 m Cable.
$17.78Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | XS5 |
Sensing
| Parameter | Value |
|---|---|
| Sensing distance, max. (alt.) | 2 mm |
| Sensing method | Inductive |
| Sensing-face shielding | Shielded |
Electrical
| Parameter | Value |
|---|---|
| Supply voltage | Not Rated ; 12-48V DC |
| AC supply voltage rating | Not Rated |
| DC supply voltage rating | 12-48V DC |
| Number of wires | 2 |
| Electrical connection | Bare Wire |
| Electrical installation type | Prewired Cable |
Output
| Parameter | Value |
|---|---|
| Output circuit contact form | NO |
| Output circuit type | DC-Type |
| Includes indicator lights | Indicator Lights Included |
| Output circuit | DC-Type |
Mechanical
| Parameter | Value |
|---|---|
| Body style | Cylindrical |
| Overall height | 53 mm |
| Body material | Brass |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature, max. (alt.) | 158 °F |
| Operating temperature, min. (alt.) | -13 °F |
| IP rating | IP68; IP69K |
Approvals
| Parameter | Value |
|---|---|
| Standards / certifications | CCC; CE; CSA; RoHS; UL Listed |
Product details
Frequently asked questions
What compliance documentation is available for XS512B1DAL2?
The sensor carries UL Listing, CE, CSA, CCC, and RoHS certifications. These cover North American, European, Chinese, and global regulatory requirements.
Can XS512B1DAL2 replace XS4P18AB110 in an existing panel?
No, these are not direct substitutes. The XS4P18AB110 is a 24 mm diameter M24 analog output sensor (0-10V) with an 8 mm sensing range and IP67 rating. The XS512B1DAL2 is a 12 mm M22 2-wire DC NO sensor with 2 mm range and IP68/IP69K. Mounting hole size, wiring scheme, and output type differ.
What is the supply voltage range for XS512B1DAL2?
It operates on 12-48 V DC, covering common 24V and 48V control systems without additional converters.
What is the sensing distance and mounting style?
The sensor is shielded (flush-mountable) with a 2 mm maximum sensing distance. The M12 threaded brass body allows direct mounting into standard drilled holes.
