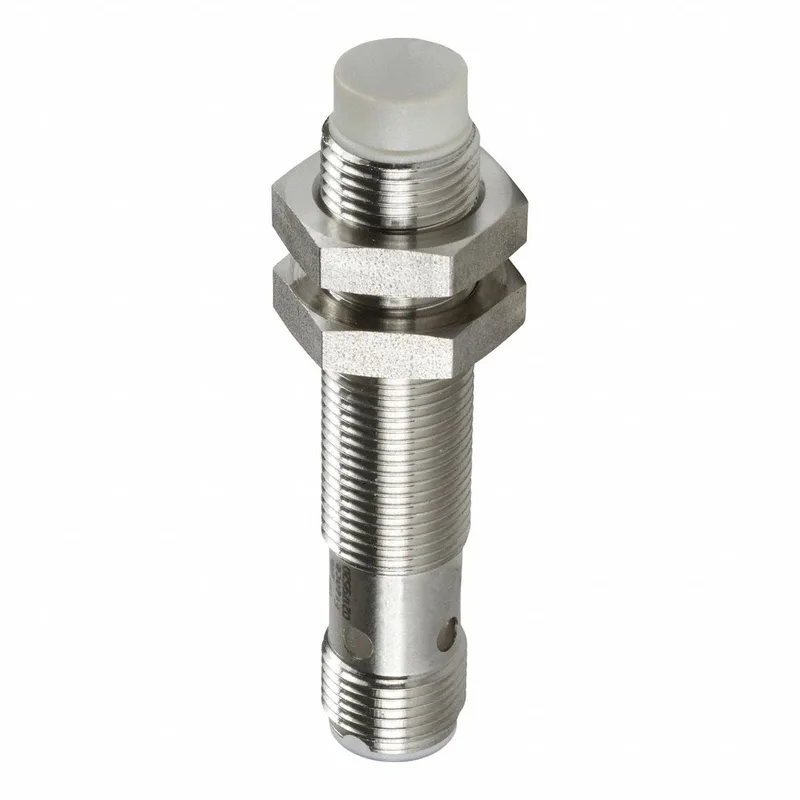

The Telemecanique XS512B1DAM12 from the XS5 series is a shielded M12 inductive proximity sensor in a brass cylindrical body. Rated for IP67 and IP69K, it withstands high-pressure washdown—a requirement for food, beverage, or heavy washdown environments. The 2 mm shielded sensing distance detects ferrous metal targets within tight installation spaces, provided the target size and approach orientation follow the application note conditions.
Environmental and mechanical design
The nickel-plated brass body gives the XS512B1DAM12 corrosion resistance suited for washdown zones; the brass material itself is compatible with food-grade chemicals if the M12 connector seal is maintained. The shielded sensing face reduces interference from surrounding metal, so it can be flush-mounted in a bracket or panel without derating the sensing distance, as long as the metal-free zone around the face respects the datasheet's recessed mount guidance.
Electrical output and wiring
This is a two-wire DC device with a normally open (NO) output, carrying up to 100 mA at 12-48 VDC. The integrated indicator lights during target presence, which aids commissioning. The direct M12 connector simplifies wiring in retrofits—no cable stripping, just a standard 4-pin female cordset. Given the 100 mA limit, the output drives a PLC input directly or a small intermediate relay, but not a contactor coil without an interface module.
