Schneider Electric XS512B1NAM12 — Proximity Sensors

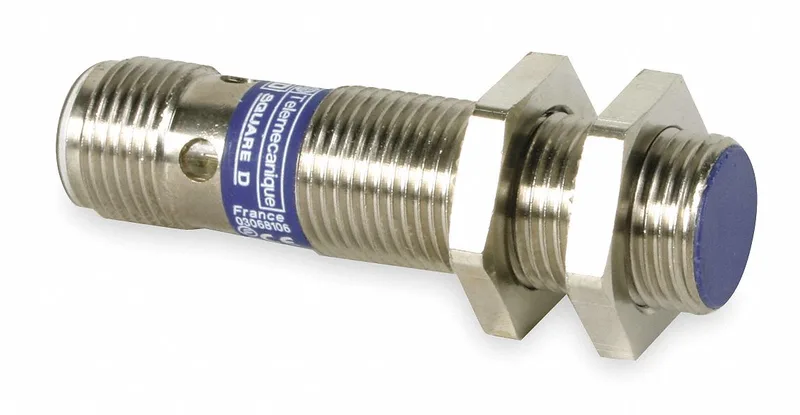

Telemecanique XS512B1NAM12 Inductive Sensor, 2mm, IP69K

MPNXS512B1NAM12

Telemecanique Sensors XS5 series, XS512B1NAM12, Inductive Cylindrical Proximity Sensor, Shielded, M12 Threaded, 4-Pin M12 Connector, NPN NO, 2 mm Sensing Distance, IP67/IP69K, Nickel-Plated Brass.

$13.97Ref. price · indicative, final on quote
Schneider Electric XS512B1NAM12 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

XS512B1NAM12 — Identification
ParameterValue
SeriesXS5
XS512B1NAM12 — Sensing
ParameterValue
Sensing distance, max. (alt.)2 mm
Sensing methodInductive
Sensing-face shieldingShielded
XS512B1NAM12 — Electrical
ParameterValue
Supply voltageNot Rated ; 12-24V DC
AC supply voltage ratingNot Rated
DC supply voltage rating12-24V DC
Number of wires3
Electrical connectionM12
Electrical installation typeDirect Connector
XS512B1NAM12 — Output
ParameterValue
Output circuit contact formNO
Output circuit typeNPN
Includes indicator lightsIndicator Lights Included
Output circuitNPN
XS512B1NAM12 — Mechanical
ParameterValue
Body styleCylindrical
Overall height50 mm
Body materialBrass
XS512B1NAM12 — Environmental
ParameterValue
Operating temperature, max. (alt.)158 °F
Operating temperature, min. (alt.)-13 °F
IP ratingIP67; IP69K
XS512B1NAM12 — Approvals
ParameterValue
Standards / certificationsCE; CSA; RoHS; UL Listed

Product details

Field-fit note

The Telemecanique XS512B1NAM12 is a shielded M12 inductive proximity sensor from the XS5 series, built for washdown zones. The IP69K rating means it survives high-pressure, high-temperature cleaning cycles—key for food and beverage lines where spares for startup need to hold up to the install date. Nickel-plated brass body resists corrosion from caustic wash agents. Sensing distance is 2 mm, shielded, so it flush-mounts in metal without loss of range. NPN normally-open output sinks up to 200 mA; standard for PLCs with sinking inputs. Integral M12 connector (4-pin, 3 wires used) speeds panel wiring and reduces junction-box labor.

Mounting & wiring note

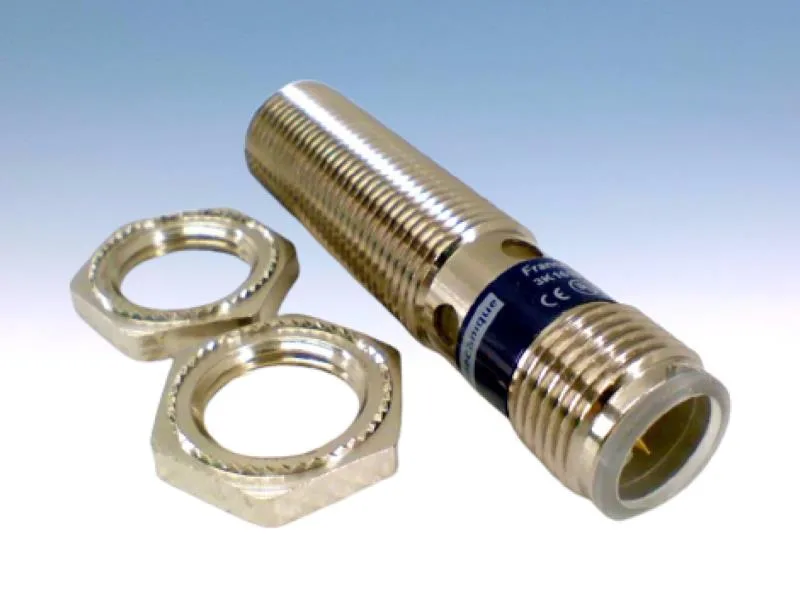

M12 threaded barrel accepts standard lock nuts; shielded design allows flush mounting. Wire: brown (VCC 12-24 VDC), blue (GND), black (NPN NO output). Leave fourth pin open.

Frequently asked questions

What is the IP rating?

IP67 and IP69K—suitable for high-pressure washdown and temporary immersion.

Can the XS512B1NAM12 replace the XS9E11RPBL01M12?

No. The peer has PNP NC output and a rectangular plastic body; this sensor has NPN NO output and a cylindrical metal body. A direct drop-in would require changing output logic and mounting hardware.

What compliance documentation is available?

CE, CSA, UL Listed, and RoHS declarations.
