Wide-Supply Inductive Sensing

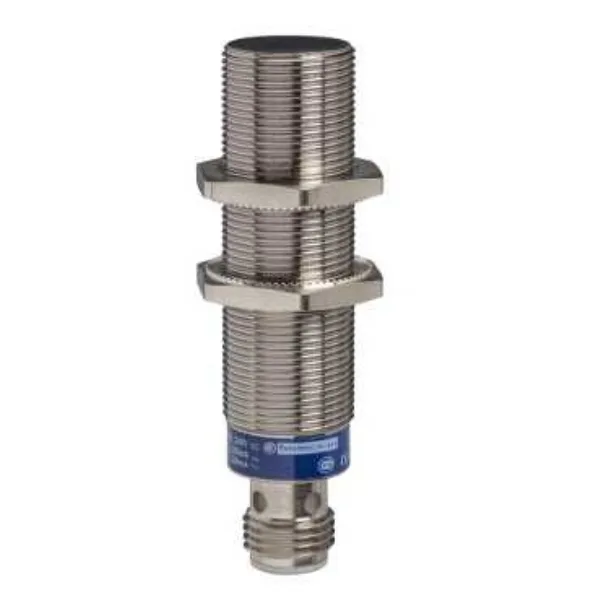

The Square D XS518B1MAU20 is a cylindrical inductive proximity sensor from the OsiSense XS5 series. It accepts a supply voltage of 24‑240 V AC or DC, making it usable across panels with mixed control voltages without stocking separate AC and DC variants. The shielded sensing face delivers a 5 mm sensing distance and the output is a 2‑wire normally open contact.
Environmental Rating
Rated IP67 and IP69K, with a nickel‑plated brass body that resists corrosion and high‑pressure washdown. The included indicator light provides local status at the sensor location.
Form Factor and Fit Considerations
The XS518B1MAU20 uses a 24 mm cylindrical body with a 1/2 in connector and is shielded for flush mounting. This form factor is distinct from flat‑block sensors such as the XS9D111A2M12, which has an 80×80×26 mm plastic housing and an M12 connector. Verify panel cutout diameter and connector type before substituting – they are not mechanically interchangeable and their sensing ranges differ (5 mm shielded vs 40 mm unshielded). No rewiring will make a flat block fit this bore.
Compliance
CE, CSA, and UL Listed, supporting global equipment certifiers and third‑party inspections.
