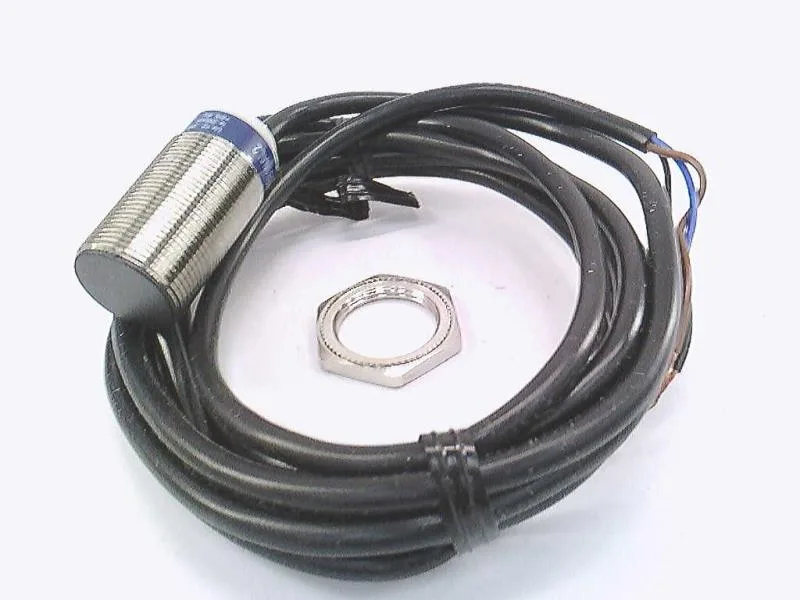

The XS518B1NAL2 is a cylindrical M18 shielded inductive proximity sensor from the Telemecanique XS5 family, wired NPN normally-open, with a 5 mm sensing range on steel. It runs on 12–24 VDC and sinks up to 200 mA. The nickel-plated brass barrel and IP68/IP69K rating put it on the short list for washdown zones in beverage, food, and chemical lines — anywhere a standard IP67 sensor would let moisture in. Built-in overload, reverse polarity, and short circuit protection mean fewer field failures when something gets wired wrong or a solenoid kicks back.
Key ratings in practice
IP69K rated for high-pressure, high-temperature washdown. Shielded face allows flush mounting in metal.
How it compares to XS9E11RPBL01M12
The XS9E11RPBL01M12 is a plastic rectangular sensor, PNP NC, IP67, M12 connector, with a 10 mm sensing distance. It's not a second source for the XS518B1NAL2 — the output type (PNP vs NPN) and the wiring (M12 remote vs 2 m cable) differ, and the body style won't mount in the same 18 mm tapped hole. If your panel was wired for a PNP M12 device, the XS518B1NAL2 would require swapping the PLC input side and changing the connector to a bare-wire termination. Keep these as separate line items.
