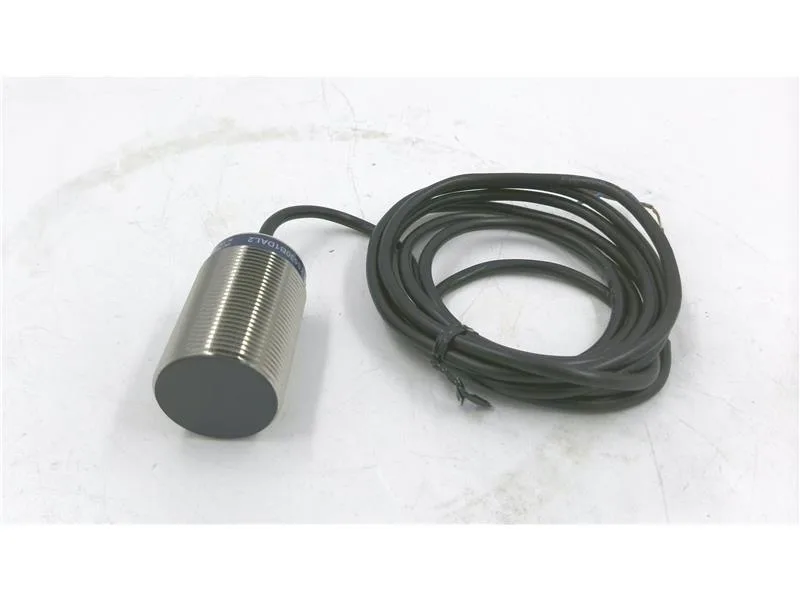

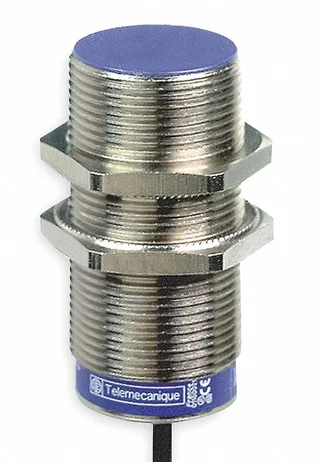

Telemecanique XS530B1DAL2 is a cylindrical M30 threaded inductive proximity sensor from the XS5 series. Shielded sensing face allows flush mounting in metal, with a maximum sensing distance of 10 mm. The two-wire DC output is normally open, rated for 12-48 VDC and 100 mA maximum load current — intended to interface directly with PLC digital inputs or relay coils without an external amplifier.
Environmental and physical build
Rated IP68 and IP69K, this sensor handles submersion and high-pressure, high-temperature washdown. The brass body with nickel plating resists corrosion in wet or caustic environments — common in food processing, beverage filling, and pharmaceutical cleaning zones. NEMA 4X enclosure rating aligns with the same washdown expectation. Prewired with 2 m bare-wire cable, no separate connector needed.
Electrical and protection features
Integrated overload protection and short-circuit protection reduce the risk of failure from a downstream short or overcurrent condition — particularly relevant when the sensor feeds a PLC input or relay that may fault. Output circuit is DC-type with a normally open contact form. The indicator LED gives immediate visual feedback for commissioning and troubleshooting.
