What this sensor is and why it matters to your BOM

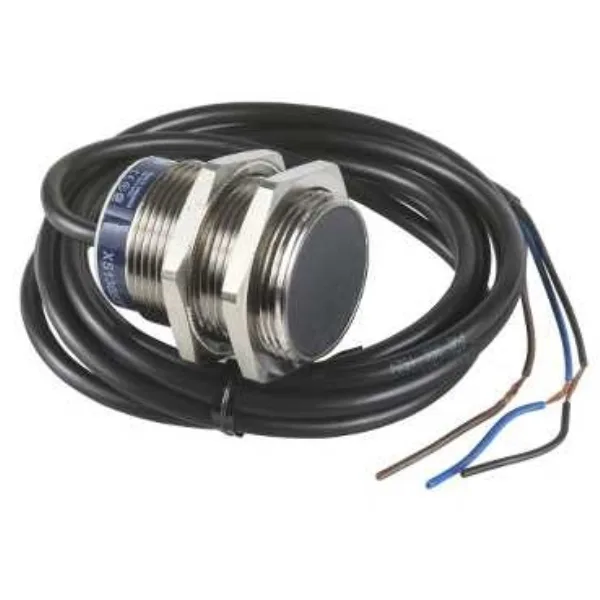

The Telemecanique XS530B1MAL2 is an M30 threaded inductive proximity sensor from the XS5 series that operates on 24–240 V AC or DC. Rated IP68 and IP69K, it takes washdown and submersion without a secondary enclosure. The nickel-plated brass body holds up in wet, oily environments where plastic sensors crack. If the line has a washdown zone or a coolant spray, this sensor survives the cycle. It's a shielded (flush-mountable) design with a 10 mm sensing distance — the standard range for a shielded M30 prox. The NO output on a 2-wire AC/DC circuit simplifies wiring for normally-open presence detection. Current capacity is 300 mA, enough for direct PLC inputs or small relay coils.
Key ratings and what they mean for fit
Supply voltage of 24–240 V AC and DC suits mixed-voltage panels. The 2-wire AC/DC output delivers up to 300 mA, enough for PLC inputs or relay coils. IP68 and IP69K sets the enclosure standard: IP68 for continuous immersion beyond 1 m, IP69K for high-pressure hot-water washdown typical in food processing. The 2 m prewired cable with bare wire ends suits permanent installation in conduit or cable tray. Built-in overload, reverse polarity, and short circuit protection make it more robust than a bare switch. If a panel jockey wires it backwards or a solenoid shorts, the sensor shuts down instead of letting smoke out. That alone saves a call-out.
Compliance and documentation
The sensor carries CE, CSA, RoHS, and UL Listing. For a GMP validation engineer, the UL mark matters for panel acceptance; RoHS compliance covers the material declaration. We can provide the EC declaration of conformity and UL file number with the shipment.
Sourcing posture
As a current-production part, this sensor moves through regular distribution. Lead times are standard for the XS5 family. Submit an RFQ with your target quantity and delivery window — we'll quote firm pricing and ship date. If you have a panel layout already wired for an M30 2-wire proximity, this is a drop-in fit; just verify the 2 m cable length reaches your terminal block.
