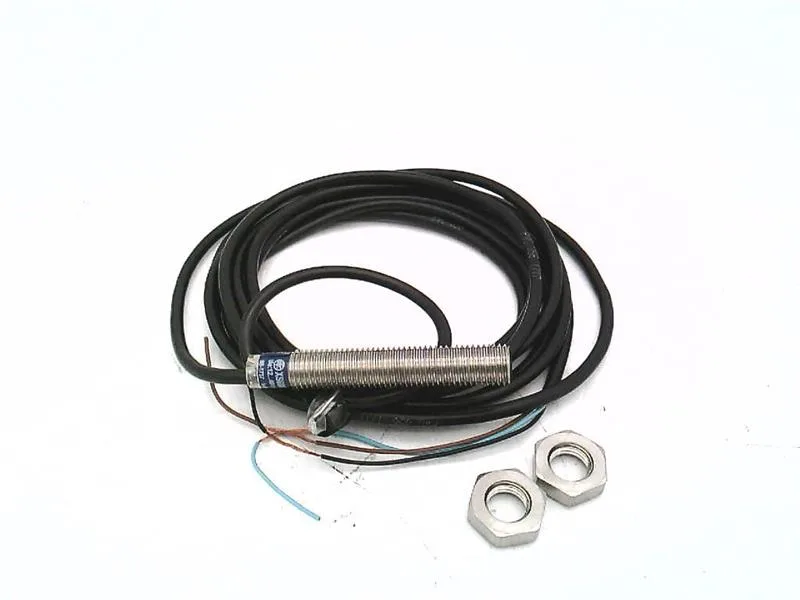

The XS608B1NAL2: Telemecanique XS6 inductive proximity sensor in the shielded M8 tubular form. Extended-range sensing reaches 3 mm — a solid reach for this 8 mm can. Stainless steel body (303 grade) with nickel plating, rated IP67 and NEMA 4X. Prewired 2 m cable with bare wire ends, 3-wire NPN normally open output. Supply spans 12-48 VDC; load current up to 200 mA. Inductive sensor for ferrous and non-ferrous metal detection in demanding environments — machine tools, packaging lines, conveyors where washdown or coolant contact is typical. Shielded sensing face allows flush mounting in metal panels without derating the 3 mm sensing distance. Compliance: CE, CSA, RoHS, UL Listed. These markings cover the electromagnetic compatibility, safety, and material restrictions for most industrial panels and OEM equipment shipped to North America and Europe.
Telemecanique XS608B1NAL2 Inductive Sensor, M8 Shielded NPN,
MPNXS608B1NAL2
Telemecanique XS6 inductive proximity sensor, XS608B1NAL2, M8 shielded, NPN NO, 3 mm sensing, 12-48 VDC, 200 mA, 2 m cable, IP67, stainless steel, extended range.
$19.05Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | XS6 |
Sensing
| Parameter | Value |
|---|---|
| Sensing distance, max. (alt.) | 3 mm |
| Sensing method | Inductive |
| Sensing-face shielding | Shielded |
Electrical
| Parameter | Value |
|---|---|
| Supply voltage | Not Rated ; 12-48V DC |
| AC supply voltage rating | Not Rated |
| DC supply voltage rating | 12-48V DC |
| Number of wires | 3 |
| Electrical connection | Bare Wire |
| Electrical installation type | Prewired Cable |
Output
| Parameter | Value |
|---|---|
| Output circuit contact form | NO |
| Output circuit type | NPN |
| Includes indicator lights | Indicator Lights Included |
| Output circuit | NPN |
Mechanical
| Parameter | Value |
|---|---|
| Body style | Cylindrical |
| Overall height | 51 mm |
| Body material | Stainless Steel |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature, max. (alt.) | 158 °F |
| Operating temperature, min. (alt.) | -13 °F |
| IP rating | IP67 |
Approvals
| Parameter | Value |
|---|---|
| Standards / certifications | CE; CSA; RoHS; UL Listed |
Product details
Frequently asked questions
What is the closest functional second-source to the XS608B1NAL2?
The XS9E11RPBL01M12 is also an inductive sensor from the same brand, but it uses PNP output and an M12 connector, while this part is NPN with a prewired cable. They are not drop-in interchangeable due to output circuit and connection differences.
What is the listed series for XS608B1NAL2?
It belongs to the XS6 series of inductive cylindrical proximity sensors from Telemecanique (Schneider Electric).
What are the key compliance certifications for this sensor?
The part carries CE, CSA, RoHS, and UL Listed markings, covering EMC, safety, environmental compliance, and North American product safety standards.
MPN
XS608B1NAL2
