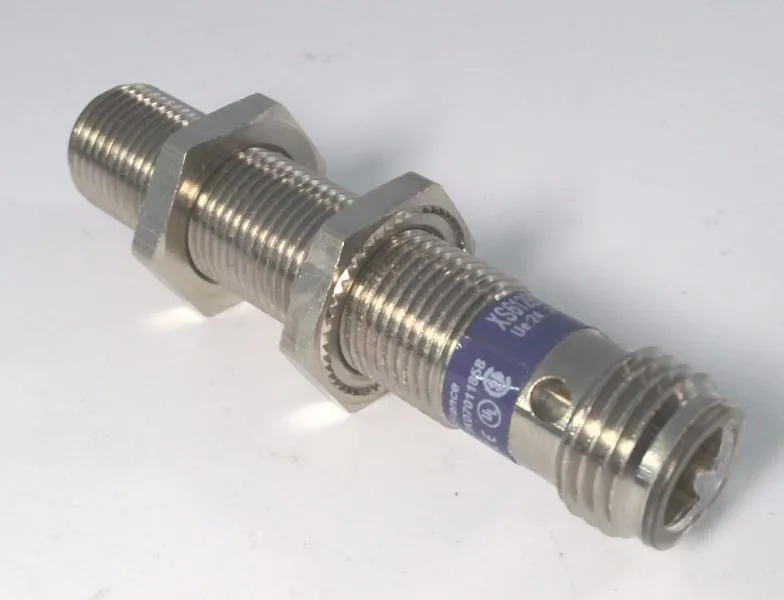

Schneider Electric XS612B1MAU20 — Proximity Sensors

Telemecanique XS612B1MAU20 Inductive Sensor, M12 Shielded, 2

MPNXS612B1MAU20

Telemecanique XS6 series, inductive proximity sensor, M12 threaded shielded, 2-wire AC/DC, 200 mA, IP67/IP69K, nickel-plated brass.

$22.86Ref. price · indicative, final on quote
Schneider Electric XS612B1MAU20 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

XS612B1MAU20 — Identification
ParameterValue
SeriesXS6
XS612B1MAU20 — Sensing
ParameterValue
Sensing distance, max. (alt.)4 mm
Sensing methodInductive
Sensing-face shieldingShielded
XS612B1MAU20 — Electrical
ParameterValue
Supply voltage24-240V AC ; 24-240V DC
AC supply voltage rating24-240V AC
DC supply voltage rating24-240V DC
Number of wires2
Electrical connection1/2 in Connector
Electrical installation typeDirect Connector
XS612B1MAU20 — Output
ParameterValue
Output circuit contact formNO
Output circuit typeAC/DC-Type
Includes indicator lightsIndicator Lights Included
Output circuit2-Wire AC/DC
XS612B1MAU20 — Mechanical
ParameterValue
Body styleCylindrical
Overall height61 mm
Body materialBrass
XS612B1MAU20 — Environmental
ParameterValue
Operating temperature, max. (alt.)158 °F
Operating temperature, min. (alt.)-13 °F
IP ratingIP67; IP69K
XS612B1MAU20 — Approvals
ParameterValue
Standards / certificationsCE; CSA; RoHS; UL Listed

Product details

What the IP and enclosure ratings mean for your line

The IP67 and IP69K ratings, plus NEMA 4X, indicate suitability for wet environments and high-pressure washdown. The nickel-plated brass body resists corrosion in food, beverage, and chemical processing areas.

The sensor carries CE, CSA, RoHS, and UL Listed marks. These cover the standard industrial approvals for North American and European installations. The nickel-plated brass body and IP69K rating support washdown applications where documentation of ingress protection and material compliance is often requested.

Frequently asked questions

Can the XS9D111A2M12 be used as a drop-in replacement?

No. The XS9D111A2M12 is a flat 80x80 mm sensor with 24 V DC supply, 40 mm sensing range, and a 4-pin M12 connector. The XS612B1MAU20 is a cylindrical M12 shielded sensor with 24-240 V AC/DC supply, 4 mm range, and a 2-wire 1/2-inch connector. Mounting and wiring are completely different.

What compliance certifications does the XS612B1MAU20 carry?

It carries CE, CSA, RoHS, and UL Listed certifications, covering safety and environmental standards for industrial use in North America and Europe.

What is the sensing distance and how does shielding affect it?

The shielded sensing face gives a maximum sensing distance of 4 mm on mild steel. Shielded sensors can be mounted flush in metal without derating the range, which is useful for tight mounting spaces.

MPN
XS612B1MAU20
