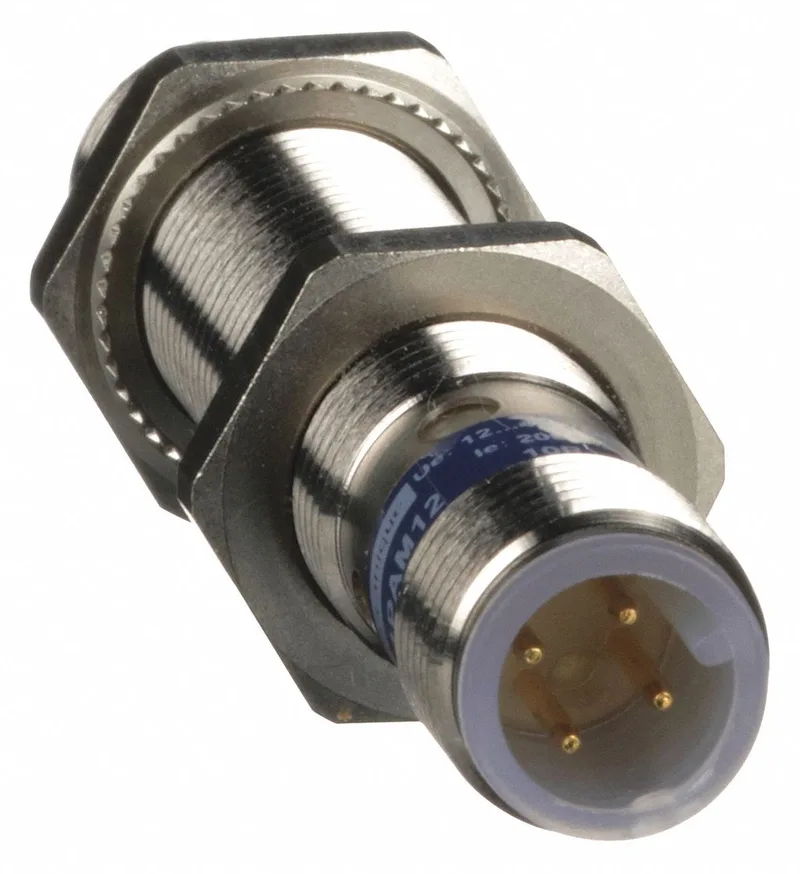

The XS612B1PAM12 is a cylindrical M12 threaded inductive proximity sensor from the XS6 series, with PNP normally-open output and shielded face. Extended range hits 4 mm detection on a shielded 12 mm body — about 1 mm over standard, which matters when you need flush mounting in steel and still want reach. The nickel-plated brass housing and IP67/IP69K rating make it a candidate for washdown zones or areas with cutting fluids. Supply voltage is 12-48 V DC, with a maximum load current of 200 mA. The M12 male connector (4-pin) simplifies replacement: no cable stripping, just unplug the old sensor. The integrated LED gives immediate confirmation of target presence.
Shielded construction supports flush mounting. Sensing distance minimum 3 mm; operating temperature -13 to 158 °F; load current maximum 200 mA.
